28B0452-000

Overview

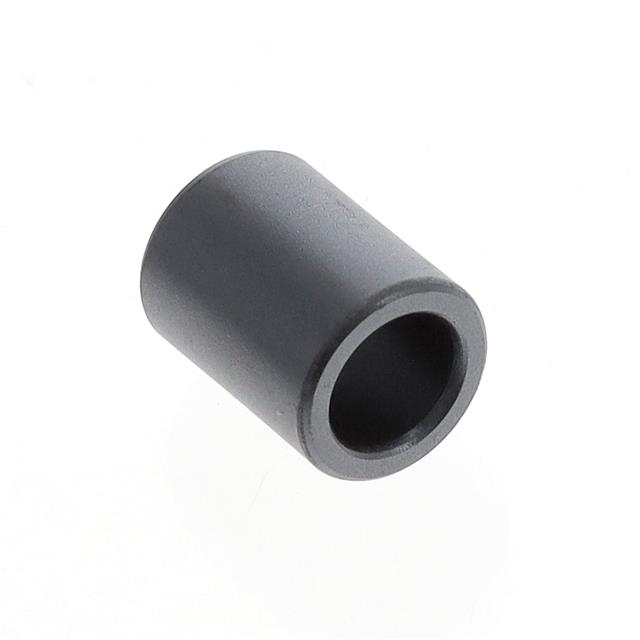

The 28B0452-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It provides an impedance of 116 Ohms at 100 MHz. The component features a cylindrical design with an inner diameter of 7.70 mm (0.303 inches), an outer diameter of 11.70 mm (0.461 inches), and a length of 15.00 mm (0.591 inches).

Feature Summary

• Solid construction designed for free-hanging installation on cables.
• Cylindrical geometry optimized for cable wrapping applications.

Applications

• Cable EMI suppression
• Signal integrity enhancement

Procurement Notes

Verify the specific impedance value and physical dimensions against the official datasheet before integration. Confirm that the inner diameter accommodates the target cable gauge. Ensure the application environment does not require specialized mounting hardware, as this is a free-hanging component.

Selection Notes

Select this component when a non-snap-open, solid ferrite core is required for permanent cable assembly. The 116 Ohm impedance at 100 MHz targets specific high-frequency noise profiles. Verify compatibility with the cable's outer diameter to ensure a secure fit without excessive force during installation.

Part Context

This part belongs to the cable ferrite core category from Laird-Signal Integrity Products. It is distinct from snap-open cores or surface-mount beads. The solid design implies it must be threaded onto the cable during manufacturing rather than clamped around an existing assembly.

FAQ

Is the 28B0452-000 a snap-open type?

No, it is a solid free-hanging ferrite core that must be slid onto the cable.

What is the operating frequency range for the specified impedance?

The impedance is rated at 116 Ohms specifically at 100 MHz.
