28B0485-000

Overview

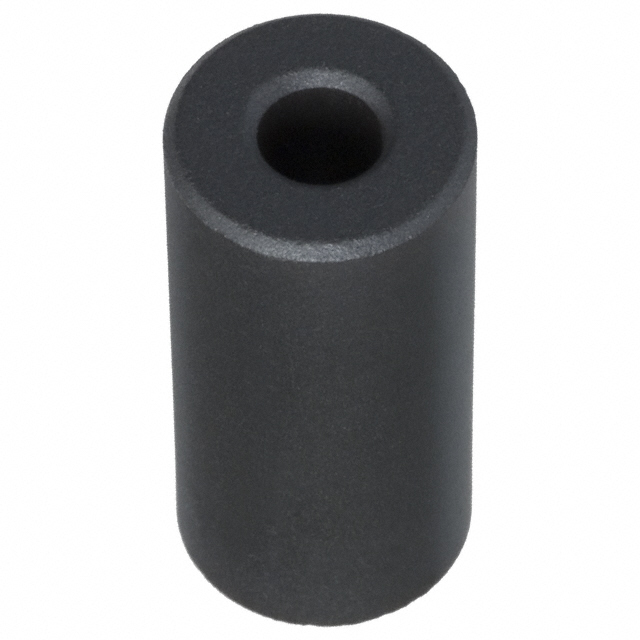

The 28B0485-000 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It provides an impedance of 320 Ohms at 100 MHz. The component features a round design with an inner diameter of 4.88 mm, an outer diameter of 12.32 mm, and a length of 25.40 mm.

Feature Summary

• Solid construction for durable cable wrapping
• Free-hanging design allows easy installation on wires

Applications

• Cable EMI filtering
• Wire noise suppression

Procurement Notes

Verify the specific impedance value of 320 Ohms at 100 MHz matches your frequency requirements. Confirm the inner diameter of 4.88 mm accommodates the target cable size. Ensure the solid core type aligns with the mechanical constraints of the assembly environment.

Selection Notes

Select this part when a non-snap-open ferrite solution is required for cables up to 4.88 mm in diameter. Consider the fixed dimensions of 12.32 mm outer diameter and 25.40 mm length for spatial planning. This solid core offers consistent performance without moving parts.

Part Context

This component belongs to the ferrite cable cores category from Laird-Signal Integrity Products. It serves as a passive electromagnetic interference suppression device designed to be slipped onto existing wiring harnesses rather than mounted on a PCB.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
