28B0563-100

Overview

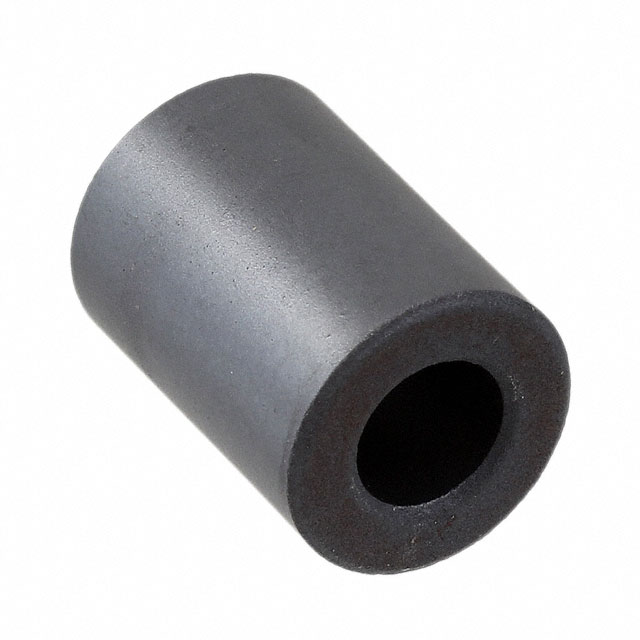

The 28B0563-100 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It belongs to the 28B series and utilizes material grade 28 for electromagnetic interference suppression. The component exhibits an impedance of 217 Ohms at 100 MHz. Its physical dimensions include an inner diameter of 0.286 inches (7.26 mm), an outer diameter of 0.562 inches (14.27 mm), and a length of 0.800 inches (20.32 mm).

Feature Summary

• Solid construction design for structural stability.
• Free-hanging installation method for cable integration.
• Material 28 composition optimized for high-frequency noise attenuation.

Applications

• Cable EMI filtering
• Signal line noise suppression
• Power cord interference reduction

Procurement Notes

Verify the specific impedance requirement of 217 Ohms at 100 MHz against the target application frequency spectrum. Confirm that the inner diameter of 7.26 mm accommodates the cable gauge in use. Ensure the solid, free-hanging form factor aligns with the mechanical constraints of the assembly environment.

Selection Notes

Select this component when high-frequency attenuation is required for cables passing through a 7.26 mm aperture. The Material 28 specification indicates suitability for specific RF noise profiles. Compare the 217 Ohm impedance value against other frequencies if the noise spectrum extends beyond 100 MHz.

Part Context

This part is categorized under Cable Ferrites within the Laird-Signal Integrity Products portfolio. It serves as a passive component for electromagnetic compatibility. The 28B series designation identifies the specific material formulation and dimensional family used for cable-mounted noise suppression applications.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical fit and impedance characteristics before considering alternative manufacturers or series.
