28B0563-200

Overview

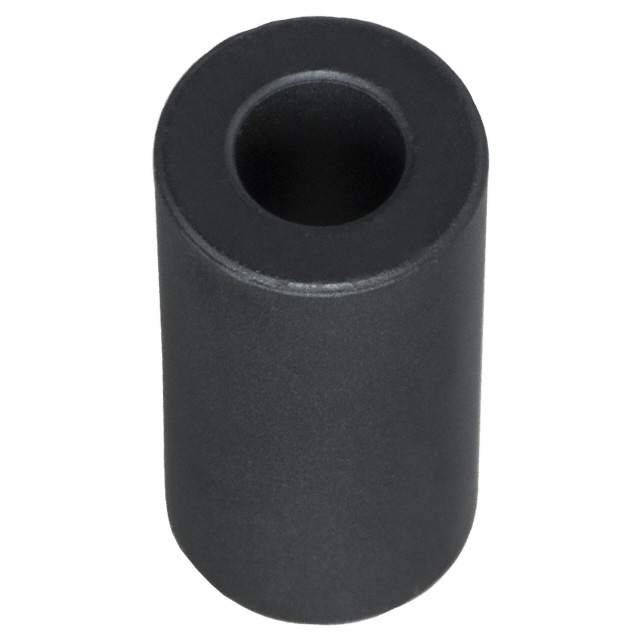

The 28B0563-200 is a solid free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It utilizes Material 28 to provide an impedance of 287 Ohms at 100 MHz. The component features a cylindrical design with an inner diameter of 7.26 mm, an outer diameter of 14.27 mm, and a length of 28.57 mm. It is classified as a cable ferrite intended for EMI suppression applications.

Feature Summary

• Solid construction designed for free-hanging installation on cables
• Utilizes Material 28 formulation for specific frequency attenuation characteristics
• Cylindrical geometry accommodates wires up to 7.26 mm inner diameter

Applications

• Suppression of unintended signals on cables
• Reduction of electromagnetic interference emissions from wires
• Common mode filtering in signal integrity circuits

Procurement Notes

Verify the exact material grade and impedance tolerance against the official datasheet before integration. Confirm that the physical dimensions match the target cable assembly requirements. Ensure compliance with relevant environmental regulations such as RoHS standards applicable to your region.

Selection Notes

Select this component when high impedance at 100 MHz is required for cable-based noise reduction. The solid design offers mechanical stability without requiring snap-fit mechanisms. Consider the inner diameter constraint when choosing cables for installation.

Part Context

This part belongs to the 28B series of cable ferrites from Laird-Signal Integrity Products. These components are engineered for signal integrity management in electronic systems. The series provides various sizes and materials to address different frequency ranges and cable diameters.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
