28C0236-0BS-10

Overview

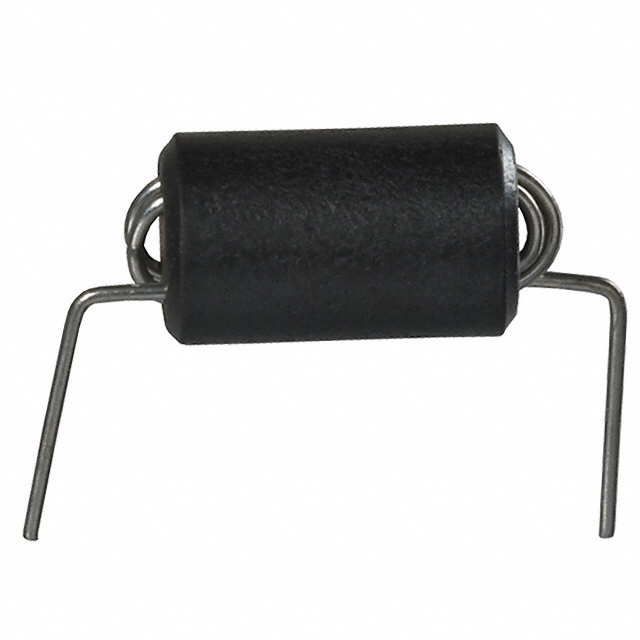

The Laird-Signal Integrity Products 28C0236-0BS-10 is a single-line ferrite bead designed for power line filtering. It features an axial leaded package with dimensions of 0.236 inches in diameter and 3.404 inches in length. The component provides an impedance of 835 Ohms at 100 MHz and supports a maximum current rating of 5A. Its DC resistance is limited to a maximum of 10 milliohms, ensuring minimal voltage drop during operation.

Feature Summary

• Provides high impedance attenuation for electromagnetic interference suppression on power lines
• Supports continuous current loads up to 5 Amperes without saturation
• Features low DC resistance to minimize power loss and heat generation
• Constructed with axial leads for reliable through-hole mounting

Applications

• Power supply input filtering
• DC bus noise suppression
• High-current signal line protection

Procurement Notes

Verify the specific suffix designation against official manufacturer documentation to confirm physical dimensions and lead configuration. Ensure the selected variant matches the required axial or radial form factor for the target PCB layout. Confirm RoHS compliance status as it varies by manufacturing batch and suffix code.

Selection Notes

Select this component when high current handling capability is required alongside significant noise attenuation. The 5A rating makes it suitable for main power rails where lower-rated beads would saturate. Verify that the 835 Ohm impedance profile aligns with the target frequency spectrum of the noise being suppressed.

Part Context

This part belongs to the 28C series of ferrite beads from Laird-Signal Integrity Products. The series offers various impedance values and package styles to address different EMI filtering requirements across industrial and consumer electronics applications.

Replacement Considerations

Direct substitute: 28C0236-0BW-10. Verify dimensional compatibility before substitution.
