28C0236-0DW-10

Overview

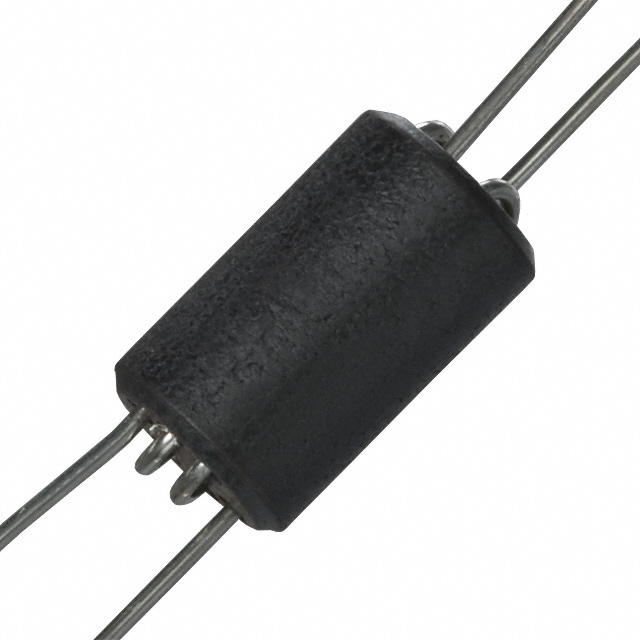

The 28C0236-0DW-10 is an axial leaded ferrite bead manufactured by Laird-Signal Integrity Products. It provides electromagnetic interference filtering with an impedance of 460 Ohms at a test frequency of 100 MHz. The component supports a maximum DC current rating of 5 Amperes and features a maximum DC resistance of 10 milliohms. Designed for through-hole mounting, it operates within a temperature range of -40°C to 125°C. The physical dimensions are 6.00 mm in diameter and 10.00 mm in length.

Feature Summary

• Provides high impedance attenuation for radio frequency noise on power lines
• Supports high continuous current handling capability
• Utilizes axial leaded construction for reliable through-hole integration

Applications

• Power line EMI suppression in electronic equipment
• Radio frequency interference filtering for signal integrity
• Electromagnetic compatibility enhancement in industrial systems

Procurement Notes

Verify the specific impedance value of 460 Ohms at 100 MHz against circuit requirements. Confirm the 5A current rating meets load demands. Ensure the axial package and 10mm length fit the PCB layout. Check RoHS compliance status as specifications may vary by production batch.

Selection Notes

Select this component when axial ferrite beads are required for high-current applications. Compare impedance characteristics against alternative frequencies if the noise spectrum differs from 100 MHz. Evaluate thermal performance under continuous 5A load conditions. Consider mechanical stability provided by the through-hole mounting style.

Part Context

This part belongs to the 28C series of ferrite beads from Laird-Signal Integrity Products. The series offers various impedance values and current ratings for different filtering needs. Similar parts include the 28C0236-0BW-10 and 28C0236-0EW-10, which share the same form factor but differ in impedance specifications.

Replacement Considerations

Direct substitutes include other Laird 28C series axial ferrite beads with matching 460 Ohm impedance and 5A rating. Verify that any replacement maintains the same 10mm length and 6mm diameter for mechanical compatibility.
