28C0236-0JW-10

Overview

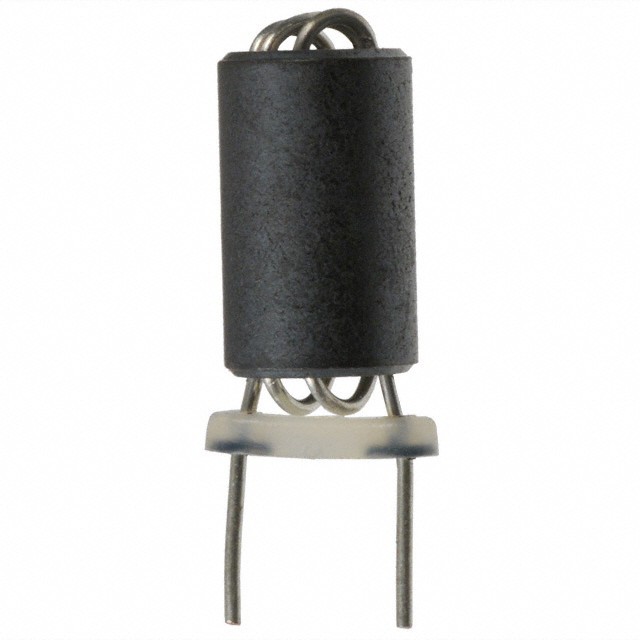

The 28C0236-0JW-10 is a single-line power line ferrite bead manufactured by Laird-Signal Integrity Products. It features an axial leaded package designed for through-hole mounting. The component provides an impedance of 998 Ohms at a test frequency of 100 MHz. It has a maximum rated current of 5A and a maximum DC resistance (DCR) of 10 milliohms. The operating temperature range extends from -40°C to 125°C. The physical dimensions are specified as 0.236 inches in diameter by 3.404 inches in length.

Feature Summary

• Provides economical filtering for differential mode EMI suppression applications
• Single-line design for power line noise attenuation
• Axial leaded construction suitable for through-hole installation

Applications

• Differential mode EMI suppression
• Power line filtering
• Electromagnetic interference attenuation in electronic circuits

Procurement Notes

Verify the specific impedance value and current rating against the official datasheet before integration, as variations may exist within the product family. Confirm that the axial lead length and diameter match the target PCB footprint requirements. Ensure the selected variant meets the required RoHS compliance status for the intended market, as specifications can vary by suffix or manufacturing batch.

Selection Notes

Select this component when high impedance at 100 MHz is required for single-line power applications. The 5A current rating supports moderate power handling needs. Compare the 998 Ohm impedance against other series variants like the 28C0236-0BW if different attenuation characteristics are needed. Ensure the axial form factor aligns with the assembly process and mechanical constraints of the enclosure.

Part Context

This part belongs to the 28C series of ferrite beads from Laird-Signal Integrity Products. The series offers various impedance values and package types for EMI filtering. The 28C0236-0JW-10 specifically denotes the 998 Ohm impedance variant in an axial leaded configuration. It is distinct from radial or surface mount options within the same manufacturer's portfolio.

Replacement Considerations

Direct substitute: 28C0236-0JW. Verify electrical parameters and physical dimensions match exactly before substitution.
