28R0315-200

Overview

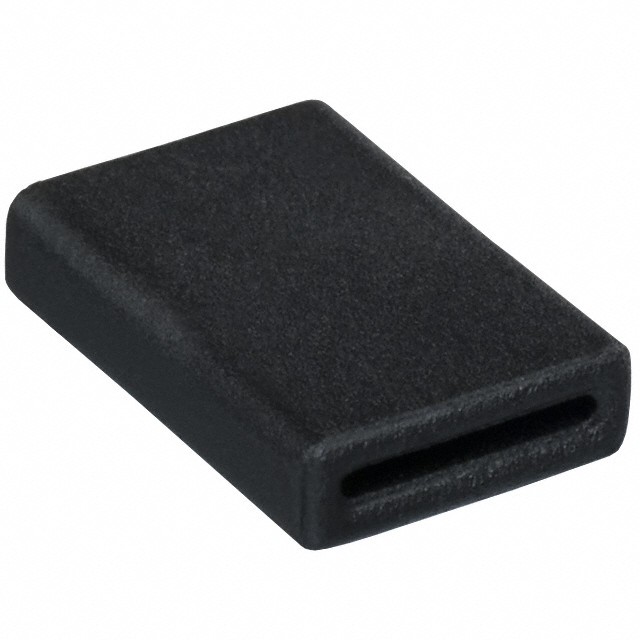

The Laird-Signal Integrity Products 28R0315-200 is a solid, free-hanging ferrite core designed for flat ribbon cable applications. It utilizes material composition 28 to provide an impedance of 102 Ohms at a test frequency of 100 MHz. The component features a flat geometry with internal dimensions of 6.00mm width by 0.70mm height and external dimensions of 8.00mm width by 0.106 inch height. This design facilitates direct installation onto flat cables without additional mounting hardware.

Feature Summary

• Solid construction optimized for flat ribbon cable suppression
• Material 28 formulation provides specific high-frequency impedance characteristics
• Free-hanging design allows for easy sliding installation onto cables

Applications

• Electromagnetic interference suppression on flat ribbon cables
• Signal integrity enhancement in data transmission lines
• Common mode noise reduction in electronic assemblies

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure correct material grade and dimensional specifications. Confirm RoHS3 compliance status through current datasheets. Check for any updated packaging quantities or lead times directly from authorized distributors, as supply chain details may change.

Selection Notes

Select this component when suppressing noise on flat ribbon cables requiring approximately 102 Ohms impedance at 100 MHz. Ensure the cable width fits within the 6.00mm internal dimension. Consider the solid design for permanent installations where removable cores are not required. Validate thermal operating ranges against application requirements.

Part Context

This component belongs to the 28 series of ferrite cores from Laird-Signal Integrity Products. The series offers various geometries and impedance values tailored for different cable types. Material 28 is commonly used for broadband noise suppression in digital circuits. The 28R0315-200 specifically targets flat cable applications within this lineup.

FAQ

What is the internal slot dimension for the 28R0315-200?

The internal dimensions are 6.00mm in width and 0.70mm in height.

At what frequency is the 102 Ohm impedance rated?

The impedance of 102 Ohms is measured at a test frequency of 100 MHz.
