28R0592-010

Overview

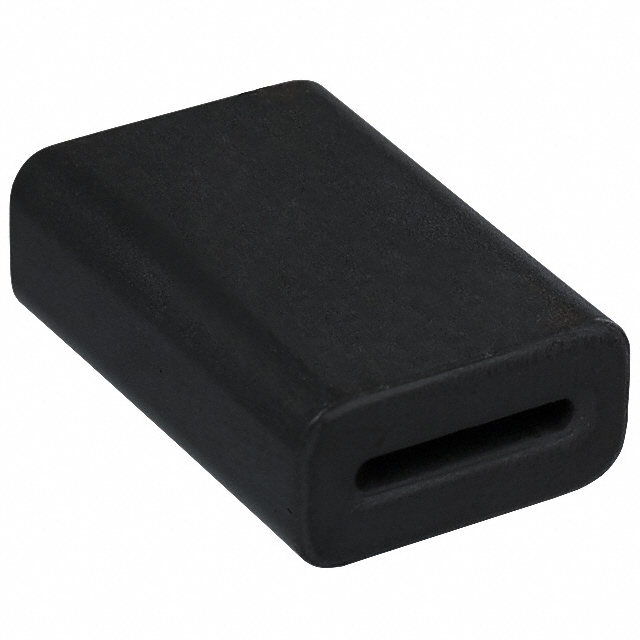

The Laird-Signal Integrity Products 28R0592-010 is a solid flat ribbon cable ferrite core designed for electromagnetic interference suppression. It features an impedance of 227 ohms at 100 MHz and utilizes 28 series material. The component has an internal slot length of 10 mm, an external length of 15.01 mm, an external width of 22.86 mm, and an external height of 7.49 mm. It operates within a temperature range of -40°C to +125°C.

Feature Summary

• Solid construction provides stable magnetic properties for consistent noise attenuation across varying conditions.
• Flat rectangular geometry accommodates ribbon cables and flat conductors without requiring complex assembly modifications.
• High impedance characteristic at 100 MHz effectively suppresses high-frequency common-mode noise on signal lines.

Applications

• Suppression of electromagnetic interference in flat ribbon cable assemblies
• Noise filtering for signal lines in electronic equipment
• Common-mode choke applications for data transmission cables

Procurement Notes

Verify the specific impedance value and physical dimensions against the official datasheet to ensure compatibility with the target cable size. Confirm that the operating temperature range meets the environmental requirements of the final application. Check RoHS compliance status if required by regulatory standards.

Selection Notes

Select this component when a flat profile is necessary for ribbon cable integration. Ensure the internal slot dimensions match the thickness and width of the cable being filtered. Consider the impedance frequency response to confirm effective noise reduction at the targeted interference frequencies.

Part Context

This part belongs to the 28R series of ferrite cores from Laird-Signal Integrity Products. The series offers various sizes and impedances tailored for different cable types. The 28 material composition is optimized for high-frequency noise suppression, making it suitable for modern digital electronics requiring strict EMI control.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify cross-reference availability through manufacturer channels if alternative sourcing is required.

FAQ

What is the impedance of the 28R0592-010 at 100 MHz?

The impedance is 227 ohms at 100 MHz.

What material is used for this ferrite core?

The core is made from 28 series ferrite material.
