28R0610-000

Overview

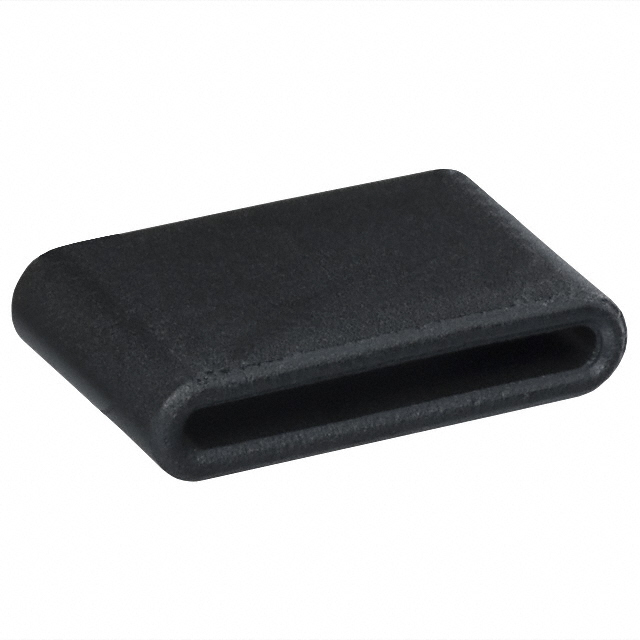

The Laird-Signal Integrity Products 28R0610-000 is a solid free-hanging ferrite core designed for electromagnetic interference suppression. It exhibits an impedance of 80 Ohms at 100 MHz. The component features a flat ribbon design with inner dimensions of 13.50 mm width by 1.40 mm height and outer dimensions of 15.50 mm width by 0.134 inch height. It operates within a frequency range from 30 MHz to 1 GHz.

Feature Summary

• Solid free-hanging construction for easy cable installation
• Flat ribbon geometry optimized for internal ribbon cables
• High impedance performance in the 30 MHz to 1 GHz spectrum

Applications

• Internal floppy disk and hard disk ribbon cables
• Printer cables
• Surface mount EMI components
• Energy and utilities equipment

Procurement Notes

Verify the specific part number 28R0610-000 against official Laird datasheets to confirm dimensional tolerances and impedance characteristics. Ensure compatibility with target cable widths before integration. Check for RoHS compliance status as required by project specifications.

Selection Notes

Select this component when suppressing noise on flat ribbon cables within the specified frequency band. The solid design allows for direct threading without split halves. Confirm that the inner width accommodates the target cable bundle thickness to ensure proper magnetic coupling.

Part Context

This ferrite core belongs to the 28R series from Laird-Signal Integrity Products, which specializes in signal integrity solutions. The series includes various impedance values and geometries tailored for different cable types and EMI mitigation requirements in electronic assemblies.

Replacement Considerations

Substitute only with verified equivalent ferrite cores offering similar impedance at 100 MHz and compatible physical dimensions. Ensure any replacement maintains the solid free-hanging form factor for existing mounting constraints.
