28R0760

Overview

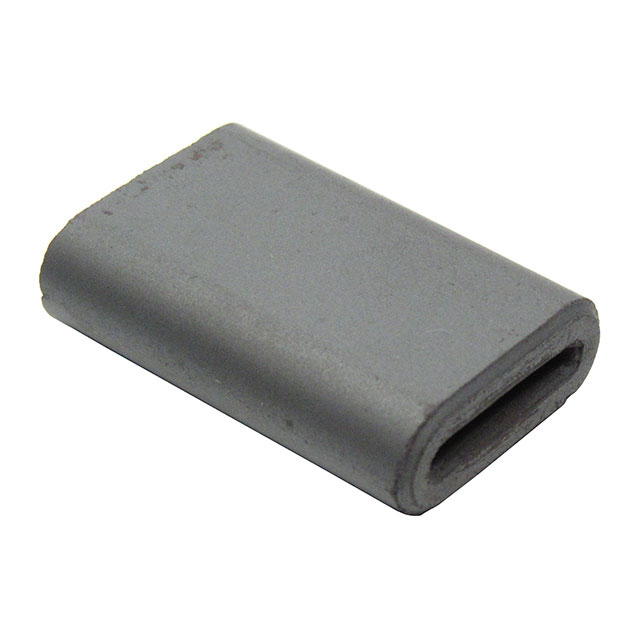

The Leader Tech Inc. 28R0760 is a solid flat cable ferrite core designed for electromagnetic interference suppression. It belongs to the Ferrishield series and utilizes material composition 28. The component features a low-profile rectangular geometry with an inner dimension of 12.95 mm in width and 1.30 mm in height. It provides an impedance of 150 ohms at 100 MHz. The unit is constructed as a single-piece solid design intended for free-hanging installation on cables.

Feature Summary

• Solid flat construction for low-profile cable integration
• Ferrishield material composition 28 for EMI suppression
• Free-hanging mounting style suitable for direct cable attachment

Applications

• Embedded electronics cable assembly
• Industrial equipment signal line filtering
• Flat cable electromagnetic interference reduction

Procurement Notes

Verify the specific impedance value and frequency range against the official datasheet before implementation, as performance characteristics may vary with frequency. Confirm that the inner dimensions match the target cable cross-section to ensure proper fit. Check RoHS compliance status if required by project specifications. Ensure the solid design meets mechanical clearance constraints within the enclosure.

Selection Notes

Select this component when a low-profile solution is required for flat or thin round cables. The 150-ohm impedance at 100 MHz indicates suitability for high-frequency noise suppression. Material 28 offers specific magnetic properties distinct from other compositions. Consider the physical size relative to the cable diameter to avoid excessive strain or poor coupling efficiency during installation.

Part Context

This part is part of Leader Tech's Ferrishield line of cable ferrites. These components are engineered to suppress common-mode noise on data and power lines. The product category includes various shapes such as beads, clamps, and cores. This specific model represents a solid flat variant optimized for space-constrained applications where traditional cylindrical cores cannot be used effectively.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Alternative solutions must be evaluated based on matching impedance curves, material composition, and physical dimensions.
