28R1127-500

Overview

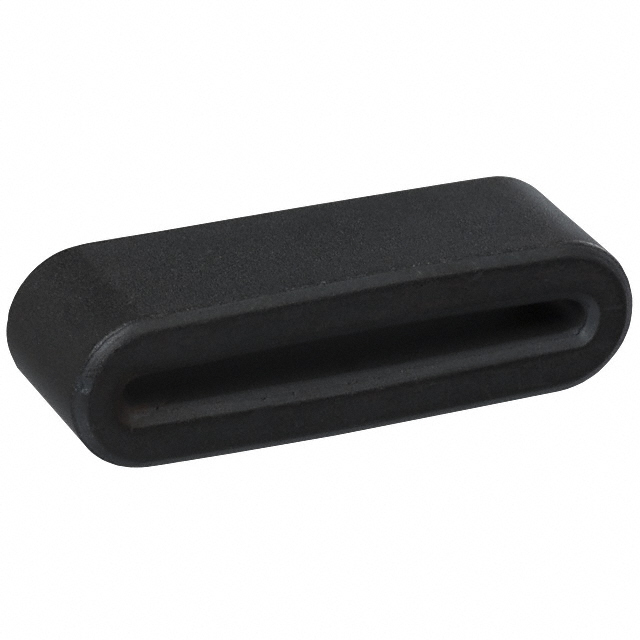

The Laird-Signal Integrity Products 28R1127-500 is a solid free-hanging ferrite core designed for cable noise suppression. It features Material 28 composition, providing an impedance of 110 Ohms at 100 MHz. The component has rectangular dimensions with an inner size of 0.925 inches wide by 0.067 inches high (23.50 mm x 1.70 mm) and an outer size of 1.125 inches wide by 0.303 inches high (28.58 mm x 7.70 mm). It is classified as a cable ferrite in the 28 series.

Feature Summary

• Solid construction for stable mechanical integrity
• Free-hanging installation design for easy cable mounting
• Material 28 formulation optimized for specific frequency attenuation

Applications

• Communication signal processing boards
• FPGA implementation circuits
• Cable noise suppression in electronic assemblies

Procurement Notes

Verify the exact part number against official manufacturer documentation to ensure correct Material 28 specification and dimensional accuracy. Confirm RoHS compliance status and current availability through authorized distributors, as supply chain conditions may vary. Cross-reference datasheet parameters with system requirements before finalizing procurement decisions.

Selection Notes

Select this component when a solid, free-hanging ferrite core with 110 Ohm impedance at 100 MHz is required. Ensure the cable diameter fits within the 0.925 inch width and 0.067 inch height inner dimensions. Consider the physical size constraints of the application relative to the 1.125 inch outer width.

Part Context

This ferrite core belongs to the 28 series from Laird-Signal Integrity Products, which utilizes Material 28 for EMI suppression. The product line includes various shapes and sizes tailored for different cable diameters and impedance requirements, serving diverse signal integrity needs in modern electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source material.
