28R1340-200

Overview

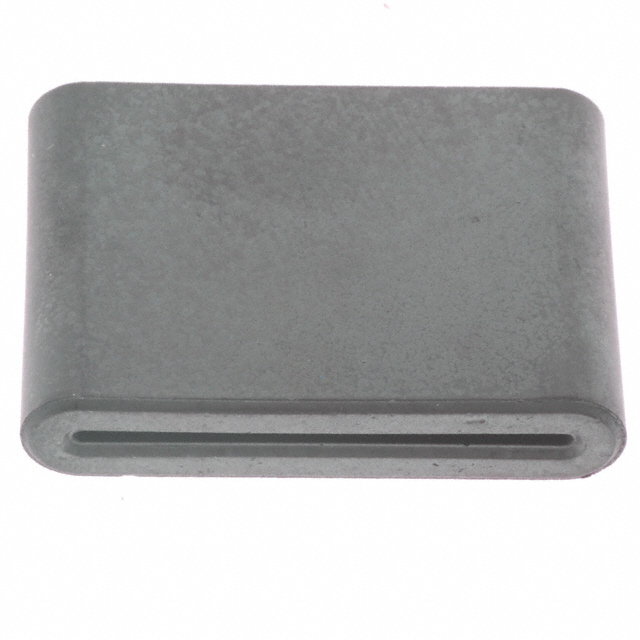

The 28R1340-200 is a solid, free-hanging cable ferrite core manufactured by Laird-Signal Integrity Products. It provides electromagnetic interference suppression with an impedance of 220 Ohms at 100 MHz. The component features a rectangular cross-section designed for ribbon or flex cables. Internal dimensions are 28.00 mm width by 1.00 mm height. External dimensions measure 28.00 mm width by 1.00 mm height. The unit operates within standard industrial temperature ranges and complies with RoHS3 regulations.

Feature Summary

• Solid construction for stable mechanical integration
• Rectangular geometry optimized for flat cabling
• High impedance performance at 100 MHz

Applications

• Ribbon cable EMI suppression
• Flex cable noise filtering
• Signal integrity enhancement in data lines

Procurement Notes

Verify the specific suffix designation against official datasheets to confirm dimensional tolerances and material composition. Ensure compatibility with existing cable harness geometries before procurement. Confirm regulatory compliance status such as RoHS3 requirements matches project specifications. Cross-reference manufacturer part numbers to avoid substitution errors during assembly.

Selection Notes

Select this component when managing wide ribbon or flexible circuits requiring uniform magnetic coverage. The rectangular profile ensures consistent contact along flat conductors. Evaluate impedance characteristics against target noise frequencies. Consider physical clearance constraints due to the specific external width and height measurements provided in technical documentation.

Part Context

This component belongs to the 28R series of cable ferrites from Laird-Signal Integrity Products. The series focuses on solutions for flat cabling applications where traditional round cores are unsuitable. These parts support signal integrity management in high-speed digital environments by attenuating common-mode noise effectively.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided source data.
