28R1654-010

Overview

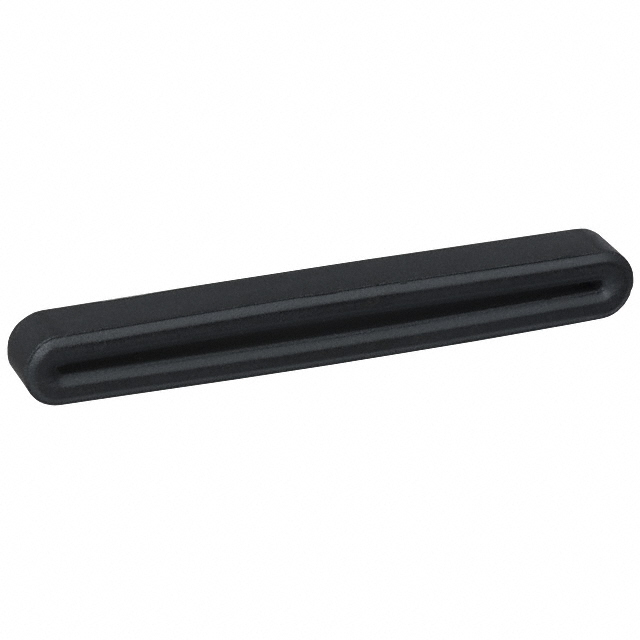

The 28R1654-010 is a solid, free-hanging ferrite core manufactured by Laird-Signal Integrity Products. It provides an impedance of 84 Ohms at 100 MHz. The component features a flat ribbon cable interface with an inside dimension of 37.5 mm width by 0.70 mm height and an outside dimension of 42.00 mm width by 5.00 mm height.

Feature Summary

• Solid construction designed for free-hanging installation on cables
• Optimized for suppressing electromagnetic interference in flat ribbon cabling applications

Applications

• Flat ribbon cable noise suppression
• Signal integrity enhancement in data transmission lines
• Electromagnetic interference filtering for peripheral connections

Procurement Notes

Verify the specific impedance value and physical dimensions against the official datasheet to ensure compatibility with the target cable assembly. Confirm RoHS compliance status and check for any updated environmental declarations prior to final procurement decisions.

Selection Notes

Select this component when a solid ferrite core is required for flat ribbon cables rather than round wires. Ensure the internal width accommodates the specific ribbon cable thickness and that the 84 Ohm impedance profile matches the targeted noise frequency spectrum.

Part Context

This part belongs to the 28 series of cable ferrites from Laird-Signal Integrity Products. These components are engineered for signal integrity management in electronic assemblies requiring effective high-frequency noise attenuation without adding significant bulk or weight to the cable harness.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
