28S2001-0M0

Overview

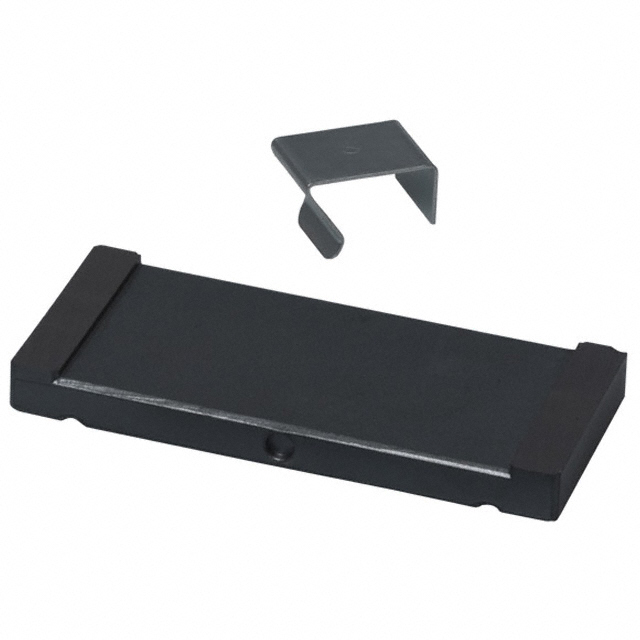

The 28S2001-0M0 is a clip-on ferrite core manufactured by Laird-Signal Integrity Products, designed for suppressing high-frequency electromagnetic interference (EMI) and cable noise. It exhibits an impedance of 280 Ohms at 100 MHz. The component features a flat design with a clip-together assembly mechanism, where two units form one complete assembly. Its physical dimensions include an inner size of 52.07mm width by 0.84mm height and an outer size of 63.50mm width by 6.35mm height. The unit measures 1.125 inches in length and utilizes a free-hanging mounting type.

Feature Summary

• Clip-together design allowing two pieces to assemble into a single functional unit
• Flat geometry optimized for specific cable profiles
• Free-hanging installation method suitable for various cable routing configurations

Applications

• High-frequency EMI suppression in electronic systems
• Cable noise reduction for signal integrity improvement
• Electromagnetic interference filtering on data or power cables

Procurement Notes

Verify the assembly requirement that two individual parts constitute one complete ferrite core unit. Confirm the inner and outer dimensional specifications match the target cable diameter and clearance constraints. Ensure the operating frequency range aligns with the 280 Ohm impedance rating at 100 MHz for effective noise suppression.

Selection Notes

Select this component when a non-invasive, clip-on solution is required for existing cabling without soldering. Consider the physical footprint of the 63.50mm outer width and 6.35mm height to ensure adequate spatial clearance. Evaluate the need for dual-unit assemblies if multiple cables require simultaneous filtering.

Part Context

This part belongs to the 28S series of ferrite cores from Laird-Signal Integrity Products. It serves as a passive EMI mitigation component distinct from surface-mount beads. The product focuses on post-manufacturing cable protection rather than integrated circuit filtering.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
