28S2022-0P0

Overview

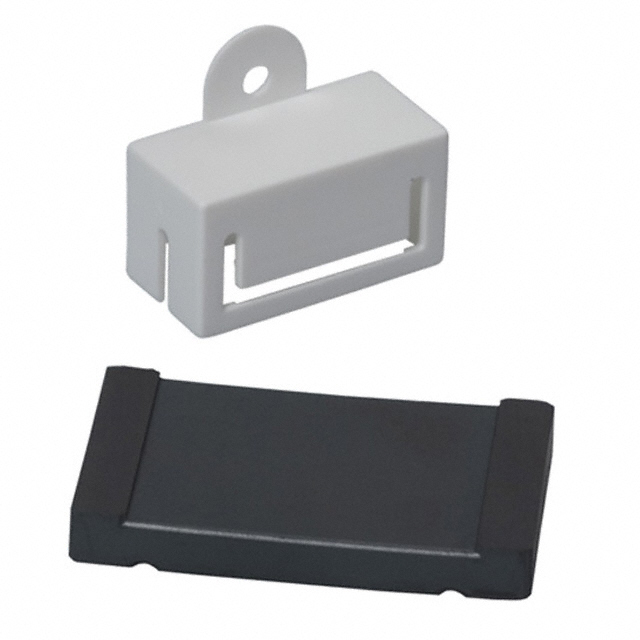

The 28S2022-0P0 is a clip-together ferrite core manufactured by Laird-Signal Integrity Products, designed for chassis mounting applications. It provides an impedance of 250 Ohms at a test frequency of 100 MHz. The component features a split-core design that allows installation around cables without disconnection. Its physical dimensions include an inner diameter width of 34.42 mm and a height of 0.84 mm (0.033 inches). The unit operates within a temperature range of -40°C to +125°C and complies with RoHS3 standards.

Feature Summary

• Clip-together split-core design enables rapid installation on existing cables
• High impedance performance for effective electromagnetic interference suppression
• Chassis mount configuration suitable for structured cabling environments

Applications

• Suppression of common mode noise in data communication lines
• EMI filtering for power supply cables in electronic equipment
• Signal integrity enhancement in industrial control wiring

Procurement Notes

Verify the specific impedance value and physical dimensions against the official datasheet before integration. Confirm compliance requirements such as RoHS3 status match project specifications. Ensure the clip mechanism accommodates the target cable diameter to maintain secure attachment during operation.

Selection Notes

Select this component when high current capacity and easy retrofitting are required. The split design avoids circuit interruption during installation. Compare impedance characteristics at relevant frequencies against alternative ferrite materials to ensure adequate noise attenuation for the specific application spectrum.

Part Context

This part belongs to the 28 series of cable ferrites from Laird-Signal Integrity Products. These components are engineered for signal integrity management in demanding electronic environments. The series offers various impedance levels and form factors to address diverse EMI challenges across consumer and industrial sectors.

Replacement Considerations

Publicly confirmed substitute part numbers were not identified in the provided source material.
