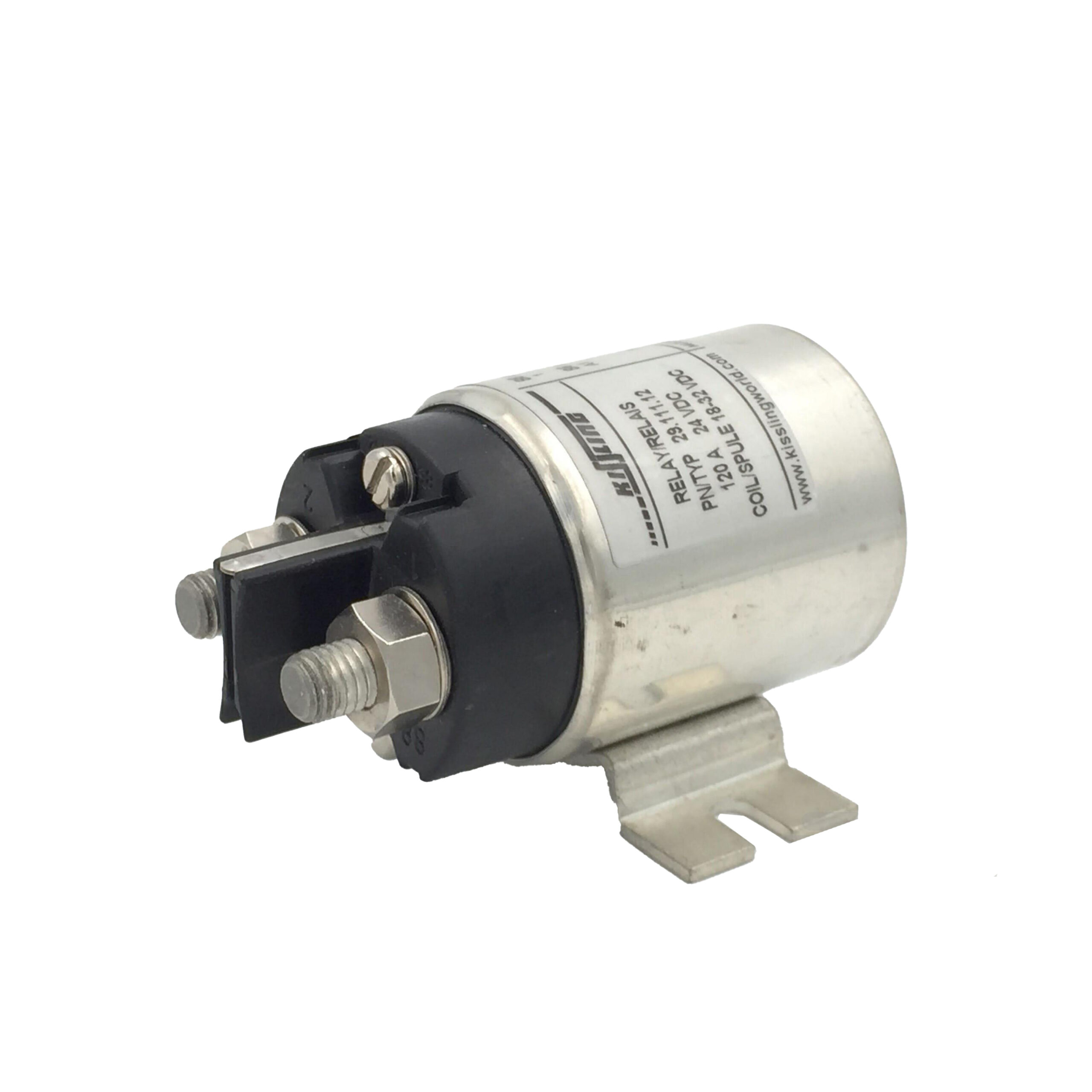

29-111-11

Product Detailed Parameters

• Description：RELAY GEN PURPOSE SPST 120A 12V
• Series：29, KISSLING
• Mfr：TE Connectivity Deutsch Connectors
• Package：Box
• Mounting Type：Chassis Mount
• Coil Voltage：12VDC
• Contact Form：SPST-NO (DM) (1 Form X)
• Contact Rating (Current)：120 A
• Switching Voltage：-
• Load - Max Switching：7W
• Coil Current：600 mA
• Coil Type：Non Latching
• Features：Diode
• Termination Style：Screw Terminal
• Seal Rating：-
• Coil Insulation：-
• Must Operate Voltage：9 VDC
• Must Release Voltage：2 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：-
• Relay Type：General Purpose
• Grade：-
• Qualification：-
• Operate Time：35 ms
• Release Time：15 ms
