2905219

Overview

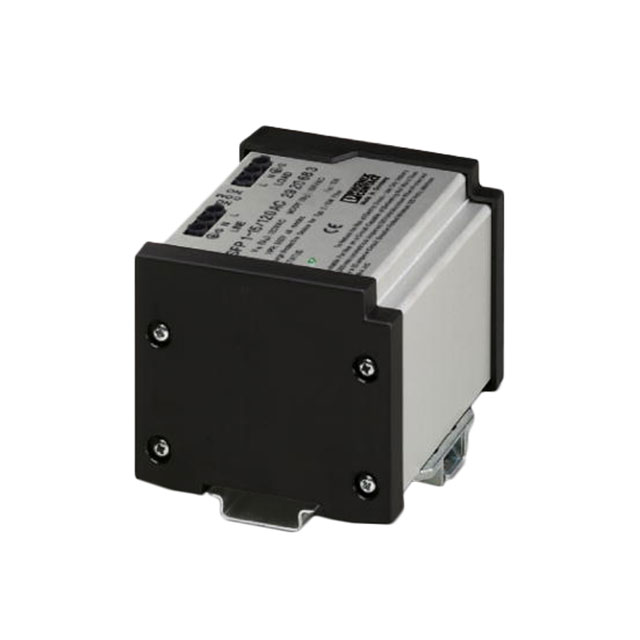

Phoenix Contact part number 2905219 is a single-phase EMC interference filter and surge protection device (SPD) designed for DIN rail mounting. It integrates a network interference suppression filter with a metal oxide varistor (MOV) to provide Type 3 / Class III equipment protection against high-frequency interference voltages. The unit operates at 150 VAC and supports a continuous current of 15 A at 50/60 Hz. Connection is achieved via screw terminal blocks requiring a tightening torque of 0.5 Nm to 0.6 Nm. This combined function prevents electromagnetic disturbances while safeguarding downstream equipment from voltage surges.

Feature Summary

• Integrates EMC filtering and surge protection in a single compact module
• Provides Type 3 / Class III equipment protection against high-frequency interference
• Includes remote status indication contact for monitoring operational state
• Utilizes metal oxide varistor technology for surge suppression

Applications

• Protection of sensitive electronic equipment in industrial control panels
• Suppression of high-frequency interference in single-phase power lines
• Integration into DIN rail mounted distribution systems requiring combined filtering and surge protection

Procurement Notes

Verify the specific revision or manufacturing date code when sourcing this component, as availability may vary due to discontinuation status. Confirm that the required screw terminal block specifications match the installation environment. Ensure the application voltage does not exceed the rated 150 VAC limit. Check for compatibility with existing DIN rail profiles and verify that the remote status contact wiring aligns with the system's monitoring requirements before finalizing procurement.

Selection Notes

Select this component only for single-phase applications operating at 150 VAC. It is suitable where Type 3 protection levels are sufficient and space constraints favor integrated filter and SPD solutions. Ensure the load current remains within the 15 A continuous rating. Consider the need for remote status indication if system monitoring is required. Verify that the screw terminal connection method is compatible with the existing wiring infrastructure.

Part Context

This device belongs to Phoenix Contact's range of surge protection devices and EMC filters. It combines the functions of a line filter and a surge arrester to address both conducted emissions and susceptibility issues. The design focuses on protecting downstream equipment from transient overvoltages and high-frequency noise common in industrial environments. It represents a solution for applications requiring compact, integrated protection without separate filter and surge arrestor units.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. As the product is listed as discontinued, alternative solutions must be evaluated based on matching electrical ratings, protection class, and physical dimensions. Consult official Phoenix Contact catalogs for current series replacements that offer similar integrated filtering and surge protection capabilities.

FAQ

What type of surge protection does this device provide?

It provides Type 3 / Class III equipment protection against high-frequency interference voltages.

Does the device include status monitoring?

Yes, it includes a remote status indication contact to monitor the operational state of the surge protection component.

What is the maximum continuous current rating?

The device supports a continuous current of 15 A at 50/60 Hz.
