292250-2

Headers, Male Pins Overview

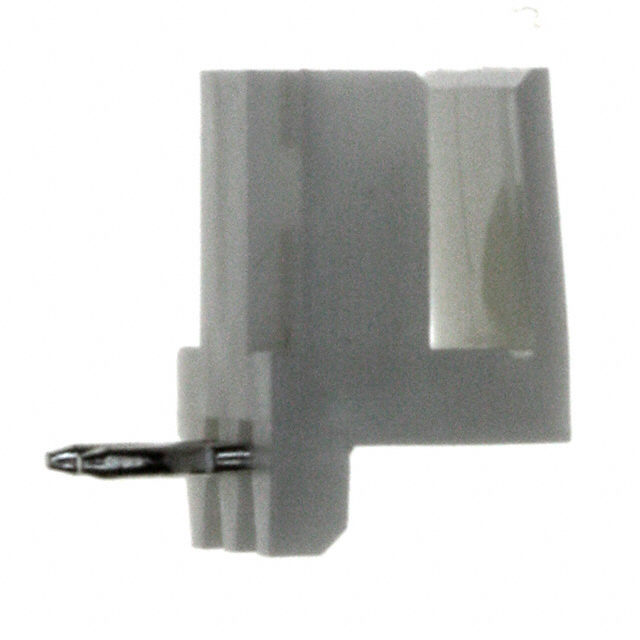

The 292250-2 is a PCB mount header from the AMP CT series, manufactured by TE Connectivity AMP Connectors. It features a 2-position configuration with a 2 mm (.079 in) centerline pitch. The connector utilizes a right-angle design for space-efficient board layouts and includes partial shrouding to guide mating. Contact surfaces are finished with tin (Sn) plating to ensure reliable conductivity and corrosion resistance. Termination is achieved via through-hole soldering, providing a secure mechanical bond to the printed circuit board.

Headers, Male Pins Feature Summary

• Right-angle orientation facilitates compact vertical integration on PCBs
• Partial shroud design ensures accurate pin alignment during mating
• Tin-plated contacts provide stable electrical performance

Headers, Male Pins Applications

• General-purpose signal interconnection
• Power distribution in low-voltage circuits
• Wire-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific part number against official TE Connectivity documentation to confirm current availability and compliance status. Ensure that the ordering suffix matches the required packaging and termination specifications. Cross-reference the datasheet for environmental ratings and mating partner compatibility before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component for applications requiring a low-profile, right-angle connection between wire harnesses and PCBs. The 2 mm pitch allows for dense circuit layouts. Consider the partial shroud feature if precise alignment is critical. Verify that the through-hole soldering method aligns with the manufacturing process capabilities of the target assembly line.

Headers, Male Pins Part Context

This component belongs to the AMP CT series, a family of connectors designed for general power and signal applications. The series offers various configurations including headers and receptacles with different pin counts and orientations. The 292250-2 specifically addresses needs for small-form-factor, right-angle interconnections within electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult official TE Connectivity substitution guides for verified alternative part numbers. Generic equivalents may not match the specific shrouding or contact geometry requirements.
