2944777721

$0.82

Description：FERRITE BEAD 985 OHM AXIAL 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk

SKU:445d9481d8ce Category: Ferrite Beads and Chips Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 985 OHM AXIAL 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Bulk
Filter Type：-
Number of Lines：2
Impedance @ Frequency：985 Ohms @ 100 MHz
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Package / Case：Axial - 4 Leads
Mounting Type：Through Hole
Height (Max)：-
Size / Dimension：0.394" Dia x 0.394" L (10.00mm x 10.00mm)
Features：-

Download product information

2944777721

Overview

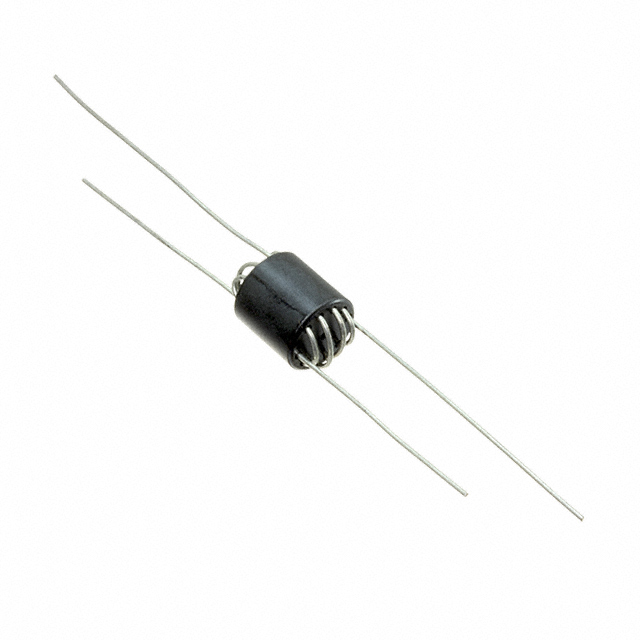

Fair-Rite 2944777721 is a ferrite bead utilizing Material 44 with an axial termination style. It features a wound bead design and measures 10 mm in length and 10 mm in diameter. The component provides an impedance of 500 ohms at a test frequency of 100 MHz. It operates within a temperature range of -55°C to +125°C.

Feature Summary

Utilizes Fair-Rite Material 44 for high-frequency noise suppression
Features a wound bead construction for enhanced performance
Designed with axial leads for through-hole mounting

Applications

High-frequency circuit noise filtering
EMI suppression in signal lines
Power line filtering applications

Procurement Notes

Verify the specific impedance value against official datasheets, as distributor listings may vary between 500 and 985 ohms. Confirm the material composition is strictly Material 44. Ensure the axial package dimensions match the required PCB layout constraints before ordering.

Selection Notes

Select this component when Material 44 characteristics are required for the target frequency band. The axial form factor suits manual or standard automated insertion processes. Verify that the physical dimensions of 10 mm by 10 mm fit the available board space without interference.

Part Context

This part belongs to the Fair-Rite 29 series of ferrite beads. It is distinct from solid cores or toroidal rings due to its specific wound geometry and axial lead configuration. The product is categorized under ferrites and serves as a discrete passive component for electromagnetic interference mitigation.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult Fair-Rite technical support for equivalent components with matching impedance and material specifications.
