2961666651

$0.77

Description：FERRITE BEAD 760 OHM RADIAL 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Box

SKU:4f6730386c1a Category: Ferrite Beads and Chips Brand: Fair-Rite Products Corp.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 760 OHM RADIAL 1LN
Series：-
Mfr：Fair-Rite Products Corp.
Package：Box
Filter Type：-
Number of Lines：2
Impedance @ Frequency：760 Ohms @ 100 MHz
Current Rating (Max)：-
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-55°C ~ 125°C
Package / Case：Radial
Mounting Type：Through Hole
Height (Max)：0.394" (10.00mm)
Size / Dimension：0.236" Dia (6.00mm)
Features：-

Download product information

2961666651

Overview

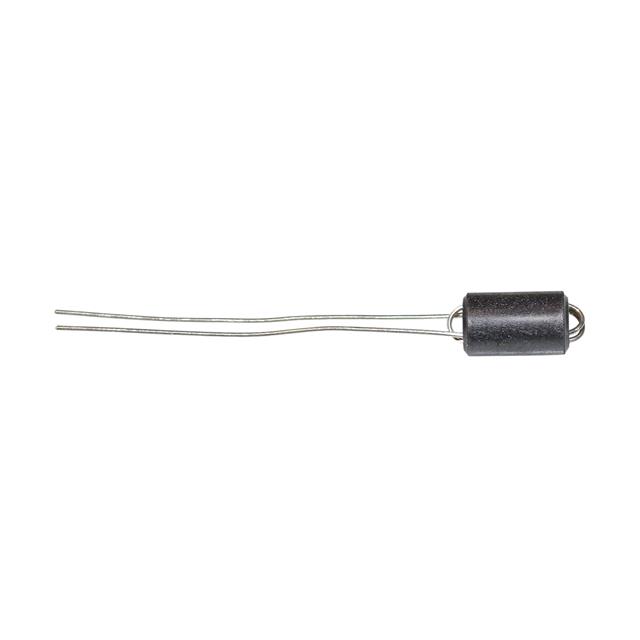

Fair-Rite 2961666651 is a wound ferrite bead with radial termination. It provides an impedance of 760 Ohms at 100 MHz. The component operates within a temperature range of -55°C to +125°C. Physical dimensions are 10 mm in length and 6 mm in diameter. It utilizes Material 43 for high permeability applications.

Feature Summary

Radial lead configuration for through-hole mounting
Wound bead construction using Material 43
High impedance performance at 100 MHz

Applications

EMI suppression on single conductors
Common mode noise filtering
Signal line protection in electronic circuits

Procurement Notes

Verify the specific impedance value and material composition against the official Fair-Rite datasheet before integration. Confirm that the radial lead spacing matches the target PCB footprint. Ensure the operating temperature range meets the environmental requirements of the final assembly.

Selection Notes

Select this component when high attenuation is required at 100 MHz. Material 43 offers high initial permeability suitable for low-frequency noise suppression. Compare physical dimensions against available board space. Evaluate current carrying capacity requirements relative to the application load.

Part Context

This part belongs to the Fair-Rite 29 series of wound ferrite beads. These components are designed for suppressing electromagnetic interference on wires and cables. The series offers various impedance values and winding configurations to suit different frequency ranges and current levels.

Replacement Considerations

Check Fair-Rite catalog for parts with similar impedance and physical dimensions. Verify compatibility with existing mounting hardware and thermal constraints.
