29F0328-0T0-10

Overview

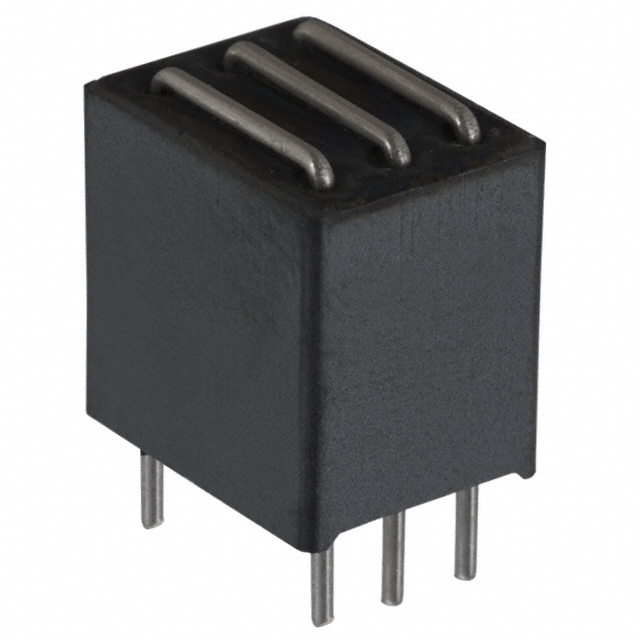

The 29F0328-0T0-10 is a ferrite differential mode array manufactured by Laird-Signal Integrity Products. It features a 6-Through-Hole (THD) package with three lines. The component provides an impedance of 342 Ohms at 100 MHz and supports a maximum current rating of 10 Amperes. Its DC resistance is 10 milliohms, and it operates within a temperature range of -40°C to 125°C.

Feature Summary

• Provides high impedance for effective electromagnetic interference suppression in power lines
• Designed for high-current applications with a 10A rating
• Utilizes a through-hole mounting configuration for secure installation

Applications

• Power supply line filtering
• Electromagnetic compatibility shielding
• High-current circuit protection

Procurement Notes

Verify the specific package type and pin configuration against your PCB layout requirements before ordering. Confirm that the 10A current rating meets your application's peak load demands. Ensure the through-hole mounting style is compatible with your assembly process. Check for any updated environmental compliance documentation if required by your region.

Selection Notes

Select this component when high current handling capability is required alongside significant impedance at 100 MHz. The through-hole format is suitable for applications requiring robust mechanical stability. Compare the 342 Ohm impedance value against your specific noise frequency spectrum to ensure adequate attenuation performance.

Part Context

This part belongs to the 29F series of ferrite arrays from Laird-Signal Integrity Products. These components are engineered for EMC filtering in demanding electronic environments. The series offers various configurations to address different line counts and current requirements.

Replacement Considerations

Direct substitute: 29F0330-2SR-10.
