29F0818-0SR-10

$3.84

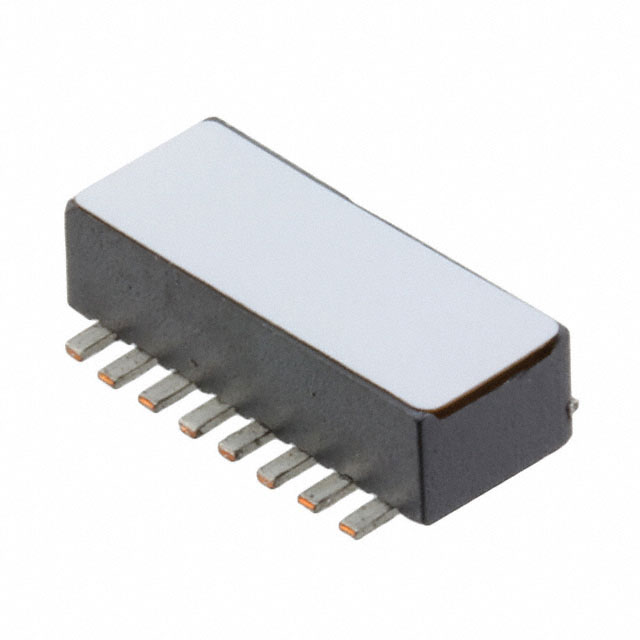

Description：FERRITE BEAD 75 OHM 16SMD 1LN
Series：29
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:25ec1058c5fc Category: Ferrite Beads and Chips Brand: Laird-Signal Integrity Products

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 75 OHM 16SMD 1LN
Series：29
Mfr：Laird-Signal Integrity Products
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：8
Impedance @ Frequency：75 Ohms @ 100 MHz
Current Rating (Max)：6A
DC Resistance (DCR) (Max)：10mOhm
Ratings：-
Operating Temperature：-40°C ~ 125°C
Package / Case：16-SMD, Flat Leads
Mounting Type：Surface Mount
Height (Max)：0.115" (2.92mm)
Size / Dimension：0.450" L x 0.177" W (11.43mm x 4.50mm)
Features：-

Download product information

29F0818-0SR-10

Overview

The Laird-Signal Integrity Products 29F0818-0SR-10 is an eight-line power line ferrite bead designed for surface mount applications. It features a 16-SMD, flat lead package with dimensions of 11.43mm x 4.50mm and a maximum height of 2.92mm. The component provides an impedance of 75 Ohms at 100 MHz and supports a maximum rated current of 6A. Its DC resistance (DCR) is limited to a maximum of 10 milliohms. It operates within a temperature range of -40°C to 125°C.
