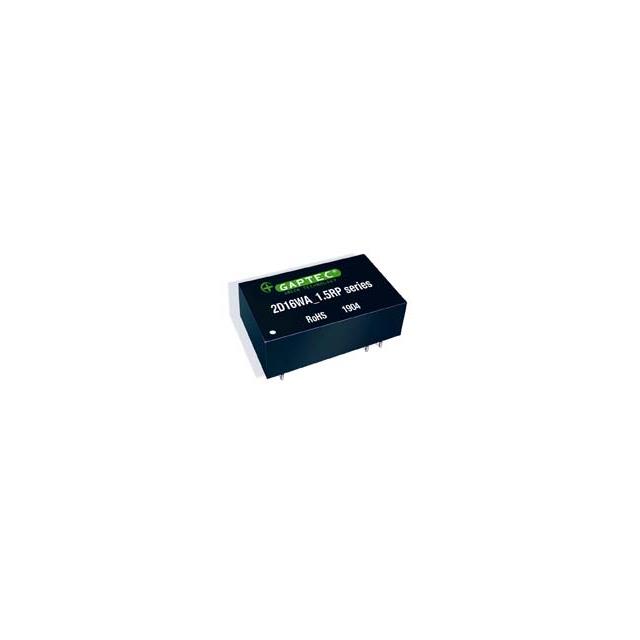

2D16WA_0505D1.5RP

2D16WA_0505D1.5RP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC INDUSTRIAL. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 2D16WA_0505D1.5RP

• Description：DC-DC INDUSTRIAL
• Series：2D16WA_1.5RP (2W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：2
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：9V
• Voltage - Output 1：5V
• Voltage - Output 2：-5V
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：200mA, 200mA
• Power (Watts)：2 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：70%
• Mounting Type：Through Hole
• Package / Case：16-DIP Module, 6 Leads
• Size / Dimension：0.95" L x 0.56" W x 0.32" H (24.1mm x 14.4mm x 8.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 2D16WA_0505D1.5RP
