2EB3

Overview

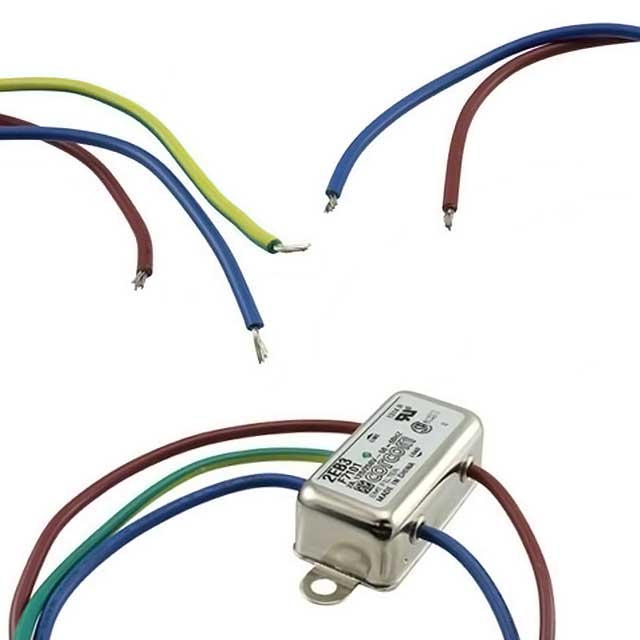

The TE Connectivity Corcom Filters 2EB3 is a single-phase EMC/EMI line filter designed for chassis mounting. It operates at 50/60Hz with a rated voltage of 250VAC and a current rating of 2A. The component utilizes wire lead termination and features a single-stage configuration. It holds CSA, UL, and VDE certifications.

Feature Summary

• Provides EMI/RFI noise suppression for AC power lines
• Single-stage filtering configuration
• Chassis mount installation style

Applications

• General electronic equipment requiring EMI suppression
• Medical devices
• Industrial control systems

Procurement Notes

Verify the specific datasheet version and certification marks (UL, CSA, VDE) against your regional regulatory requirements. Confirm that the wire lead length and gauge meet your assembly specifications. Check for any RoHS compliance status updates in the latest manufacturer documentation before finalizing procurement.

Selection Notes

Select this component when a single-stage, chassis-mounted EMI filter is required for 2A applications. Ensure the operating frequency matches your system's 50/60Hz requirement. Verify that the wire lead termination method is compatible with your internal wiring harness design.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for various industrial and commercial applications. The 2EB3 model represents a standard single-stage solution within their lineup of EMI/RFI suppression components.

Replacement Considerations

FN9246-2-06 by TE Connectivity Schaffner is listed as a similar substitute part.
