2EK1

Overview

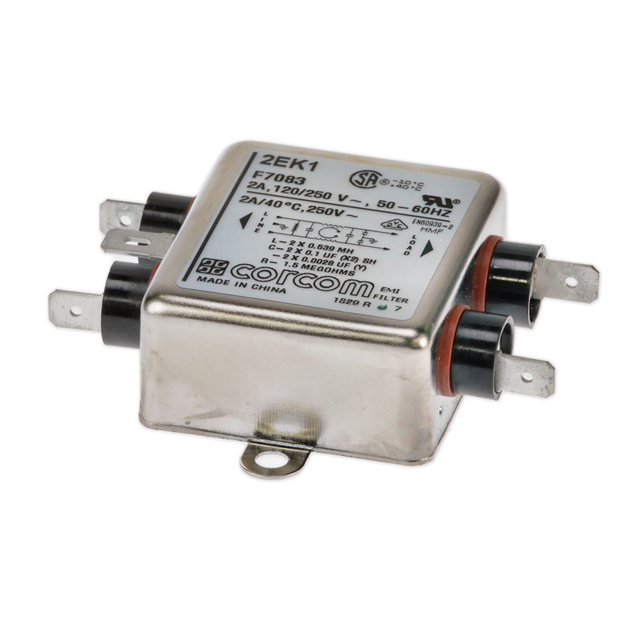

The TE Connectivity Corcom Filters 2EK1 is a single-phase EMC/EMI line filter designed for commercial applications. It features a two-stage configuration with quick connect termination and flange mount installation. The component operates at 50/60Hz with a rated voltage of 250V AC and a current capacity of 2A.

Feature Summary

• Provides EMI/RFI suppression for high impedance loads
• Integrates power entry with noise attenuation in a compact form factor
• Supports compliance with international safety standards including UL, CSA, and VDE

Applications

• Industrial automation equipment
• Medical devices
• Telecommunications infrastructure
• Consumer electronics

Procurement Notes

Verify the specific suffix code against the manufacturer datasheet to confirm exact termination style and mounting hardware variations. Ensure the selected variant matches the required panel cutout dimensions and lead length specifications for the target enclosure design before finalizing procurement orders.

Selection Notes

Select this model for applications requiring moderate noise attenuation in single-phase circuits. Consider the 2A current rating and 250V AC voltage limit when designing the power stage. Verify that the quick connect terminals are compatible with the upstream wiring harness or PCB footprint requirements.

Part Context

This component belongs to the Corcom series of power line filters from TE Connectivity. The series offers various configurations for different current ratings and filtering stages. The 2EK1 represents a specific low-current solution within this broader portfolio of electromagnetic compatibility components.

Replacement Considerations

Consult the official Corcom EMI/RFI Filter Selector Chart for direct substitutes. Verify electrical parameters and physical dimensions before replacing with alternative part numbers to ensure system compatibility.
