Product Detailed Parameters
- Description：LINE FILTER 250VAC 2A CHASS MNT
- Series：K
- Mfr：TE Connectivity Corcom Filters
- Package：Bag
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：2:00 AM
- Frequency - Operating：50/60Hz
- Applications：General Purpose
- Approval Agency：CSA, UR, VDE
- Operating Temperature：-10°C ~ 40°C
- Mounting Type：Chassis Mount
- Termination Style：Wire Leads
- Inductance：539µH
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

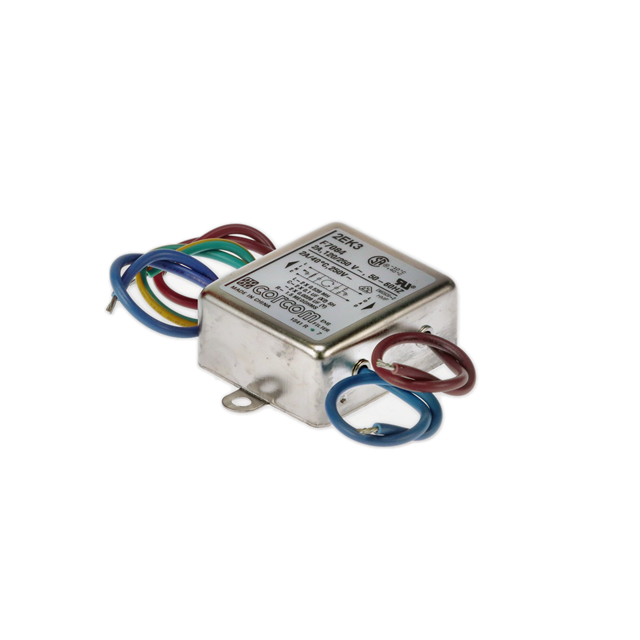

The TE Connectivity Corcom Filters 2EK3 is a single-phase EMI/RFI power line filter module designed for chassis mounting. It features wire lead termination and supports a rated current of 2 A at 250 VAC, 50/60Hz. The component utilizes a single-stage configuration to suppress conducted electromagnetic interference. It is part of the K series (1-10 Amp) and complies with UL standards.
Feature Summary
- Integrates EMI/RFI filtering capabilities directly into the power entry interface
- Provides reliable noise suppression for sensitive electronic equipment
- Supports secure chassis mounting via flange design
Applications
- Industrial automation systems requiring power line noise mitigation
- Medical devices needing compliant power entry modules
- Telecommunications infrastructure equipment
- Consumer electronics with strict EMC requirements
Procurement Notes
Verify the specific datasheet version for the 2EK3 model to confirm exact leakage current values and certification details such as UL or CSA listings. Ensure that the wire lead specifications match the system's wiring harness requirements before integration. Cross-reference the manufacturer number with official TE Connectivity documentation to avoid substitution errors.
Selection Notes
Select this component when a compact, single-stage filter solution is required for 2 A applications. The wire lead termination style simplifies assembly compared to screw terminals. Consider the chassis mount form factor for space-constrained enclosures where panel penetration is limited. Verify voltage ratings against the local mains supply frequency and amplitude.
Part Context
This component belongs to the TE Connectivity Corcom Filters K series, which covers power line filters ranging from 1 to 10 Amperes. The series offers various mounting styles and termination options to accommodate diverse industrial and commercial power entry needs while maintaining compliance with international safety standards.
Replacement Considerations
Consult the official TE Connectivity selector guide for direct substitutes within the K series. Alternative models may offer different current ratings or termination types. Verify pinout compatibility and physical dimensions if replacing with non-OEM components.
