2EYP

Overview

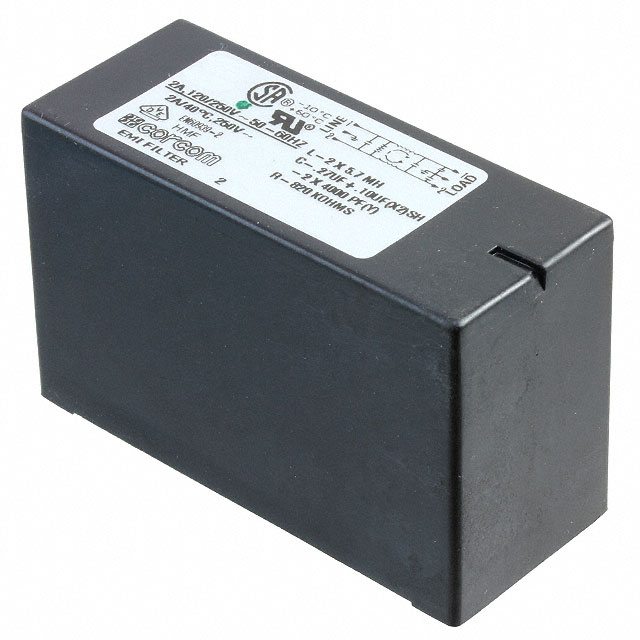

The TE Connectivity Corcom Filters 2EYP is a single-phase EMC/EMI line filter designed for commercial applications. It operates at 50/60Hz with a rated voltage of 250VAC and a current rating of 2A. The component utilizes through-hole mounting with PC pin termination. It features a single-stage configuration to suppress electromagnetic interference.

Feature Summary

• Provides single-stage EMI/RFI suppression for power lines
• Designed for through-hole PCB mounting via PC pins
• Suitable for commercial-grade equipment requiring noise reduction

Applications

• Commercial electronic equipment power inputs
• General-purpose EMI/RFI filtering in AC power circuits
• Single-phase power line noise suppression

Procurement Notes

Verify the exact electrical specifications against the official datasheet before integration. Confirm that the through-hole PC pin termination matches your PCB layout requirements. Ensure the 2A current rating and 250VAC voltage rating are sufficient for your specific application load. Check for any RoHS compliance updates or recent product change notices from the manufacturer.

Selection Notes

Select this component when a single-stage, low-current EMI filter is required for commercial devices. It is appropriate for applications where space constraints favor through-hole PC pins over panel mount connectors. Compare its attenuation characteristics against other Corcom series filters if higher performance is needed.

Part Context

This part belongs to the TE Connectivity Corcom Filters family, which specializes in power line filtering solutions. The 2EYP model represents a standard single-phase filter option within their broader portfolio of EMI/RFI suppression components designed for various industrial and commercial standards.

Replacement Considerations

Consult the official TE Connectivity substitute guide for verified alternatives. Ensure any replacement maintains the same 2A rating, 250VAC voltage, and single-stage topology.
