2FBH3=F8589

Overview

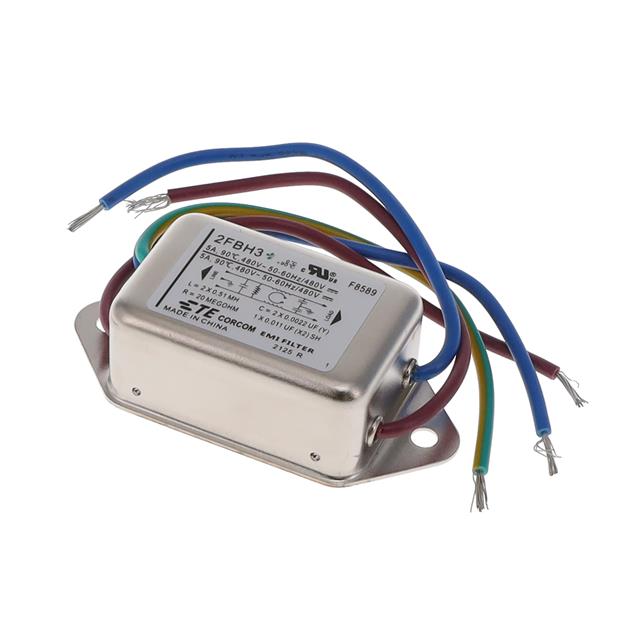

The TE Connectivity Corcom Filters 2FBH3=F8589 is a single-phase EMC/EMI line filter designed for industrial applications. It features a 2A current rating and supports voltages up to 480V AC or DC. The unit operates within a frequency range of 50 to 60Hz and utilizes a single-stage filtering architecture. Input and output connections are provided via wire leads, facilitating integration into various power systems.

Feature Summary

• Provides single-phase electromagnetic interference suppression
• Supports high voltage operation up to 480V AC/DC
• Utilizes wire lead termination for flexible installation

Applications

• Power supply units
• Battery chargers
• Portable electronic devices
• Energy-efficient systems

Procurement Notes

Verify the exact part number 2FBH3=F8589 against official TE Connectivity documentation before procurement. Confirm that the 2A rating and 480V specification align with your system requirements. Ensure compatibility with 50-60Hz operational frequencies. Check for RoHS compliance status if required by your manufacturing standards.

Selection Notes

Select this component when single-phase EMI filtering is required for circuits operating at 480V. The 2A current capacity suits moderate load applications. Wire lead inputs simplify wiring in custom assemblies. Consider the single-stage design for cost-effective noise reduction solutions where space constraints allow standard module dimensions.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, specifically the FB family of single-phase filters. These modules are engineered for commercial and industrial use, offering reliable performance in environments requiring effective power line noise suppression. The product integrates seamlessly into existing power distribution architectures.

Replacement Considerations

Public confirmed substitute: B84771M0003L000 (TDK). Verify electrical specifications and mounting compatibility before substitution.
