2MM-HSD-S06-HT-02-H-TB

Headers, Male Pins Overview

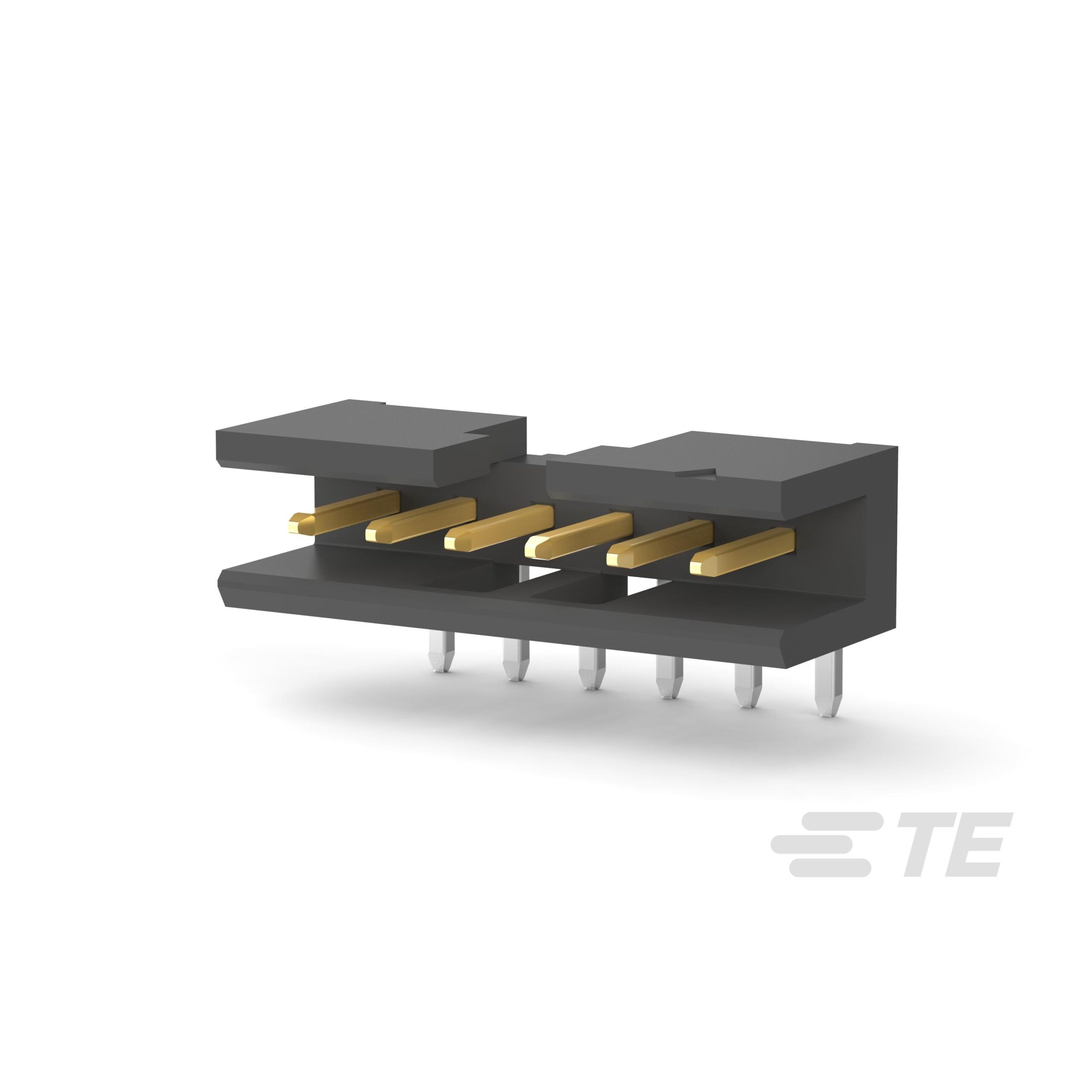

The 2MM-HSD-S06-HT-02-H-TB is a 6-position board-to-board header from the AMPMODU 2MM series. It features a 2.00mm pitch, right-angle through-hole termination, and a shrouded design with polarizing keys. Rated for 250VAC and 2A current, it utilizes gold-plated mating contacts and tin-plated tail contacts made of phosphor bronze. The housing is black LCP rated UL94 V-0, operating between -40°C and 125°C.

Headers, Male Pins Feature Summary

• Shrouded header design with integrated polarizing keys to ensure correct mating orientation
• Right-angle configuration facilitates compact board-to-board interconnections
• Gold-plated contact surfaces provide reliable signal transmission and corrosion resistance

Headers, Male Pins Applications

• Board-to-board interconnects in industrial control systems
• Signal routing in telecommunications equipment
• Internal connections within consumer electronic devices

Headers, Male Pins Procurement Notes

Verify that the specific ordering suffix matches the required pin count, insulation height, and contact plating thickness. Confirm RoHS3 compliance status if restricted substances are prohibited. Ensure the right-angle mounting style aligns with the PCB layout constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a shrouded, polarized header is required for high-density board-to-board applications. The 2.00mm pitch allows for moderate trace density while maintaining robust mechanical stability. Consider the right-angle form factor for space-constrained vertical stacking scenarios requiring secure latching.

Headers, Male Pins Part Context

This part belongs to the AMPMODU 2MM Interconnection System, designed for general-purpose applications. It complements receptacles and other headers within the same series, offering a standardized solution for reliable electrical connections across various electronic industries.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other TE Connectivity AMPMODU 2MM series headers with matching 6-position counts and right-angle shrouded designs. Verify identical pitch, current ratings, and insulation material properties before substitution.

Headers, Male Pins FAQ

What is the purpose of the shrouded design?

The shrouded design incorporates polarizing keys to prevent incorrect mating orientation and protect contacts during insertion.

Is this connector suitable for high-temperature environments?

Yes, the LCP insulation supports operation up to 125°C, making it suitable for demanding thermal conditions.
