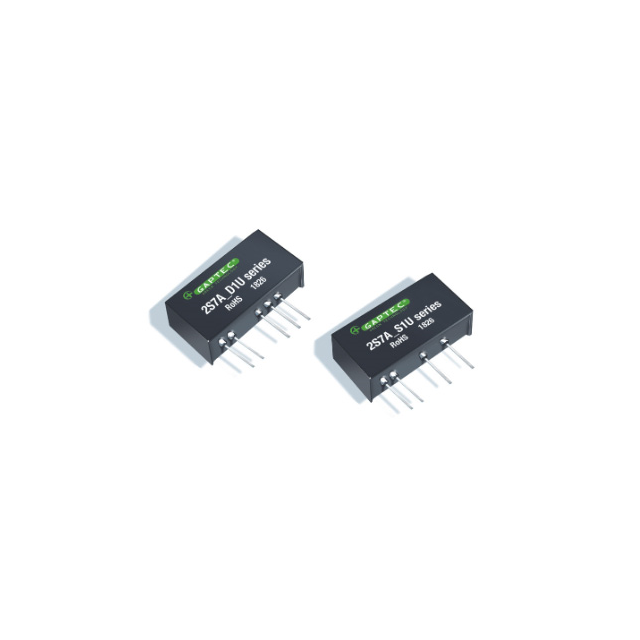

2S7A_1209S1UP

2S7A_1209S1UP is listed in the DC DC Converters range at ChipApex. The manufacturer field lists GAPTEC Electronic. Its product description is DC-DC. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for 2S7A_1209S1UP

• Description：DC-DC
• Series：2S7A_1U (2W)
• Mfr：GAPTEC Electronic
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：10.8V
• Voltage - Input (Max)：13.2V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：222.2mA
• Power (Watts)：2 W
• Voltage - Isolation：1 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 85°C
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE
• Standard Number：60950-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for 2S7A_1209S1UP
