2VB3

Overview

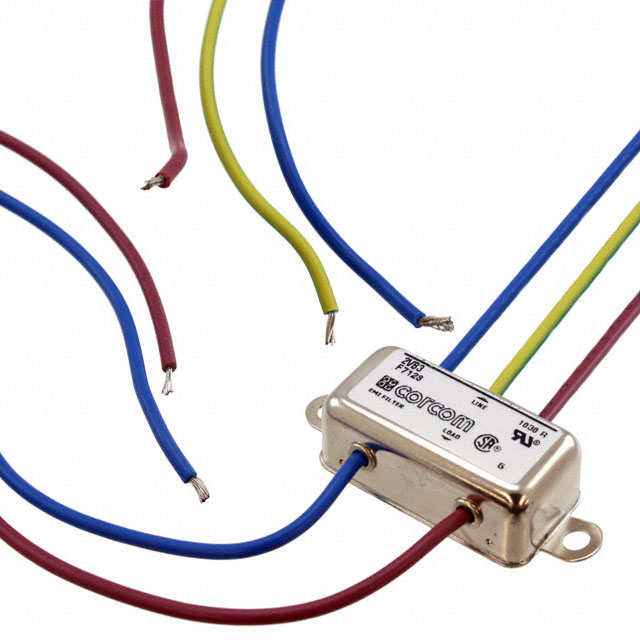

The TE Connectivity Corcom Filters 2VB3 is a single-phase power line filter designed for chassis mounting. It features a rated voltage of 250VAC and a current rating of 2A, operating at frequencies of 50Hz and 60Hz. The component utilizes wire termination methods and includes an RFI filtering function to suppress electromagnetic interference in AC power circuits.

Feature Summary

• Provides RFI filtering for single-phase AC power applications
• Designed for secure chassis mounting installation
• Utilizes wire termination for circuit connection

Applications

• Electronic lighting devices with fluorescent ballasts
• Solid state lighting drivers
• General electronic equipment requiring EMI suppression

Procurement Notes

Verify the specific datasheet version and manufacturing origin before procurement. Confirm that the wire termination style matches your assembly requirements. Ensure the chassis mounting dimensions align with your enclosure design constraints prior to ordering.

Selection Notes

Select this component when a compact, single-phase RFI filter is required for 250VAC systems. It is suitable for applications where chassis mounting is preferred over panel mounting. Consider the 2A current rating to ensure it meets the load requirements of the connected equipment without exceeding thermal limits.

Part Context

This part belongs to the TE Connectivity Corcom Filters series, which specializes in EMI/RFI suppression components. The 2VB3 model is specifically engineered for power line filtering, offering protection against conducted noise in low-voltage AC environments commonly found in commercial and industrial electronics.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Consult official TE Connectivity resources or authorized distributors for verified cross-reference information.
