2VR1

Overview

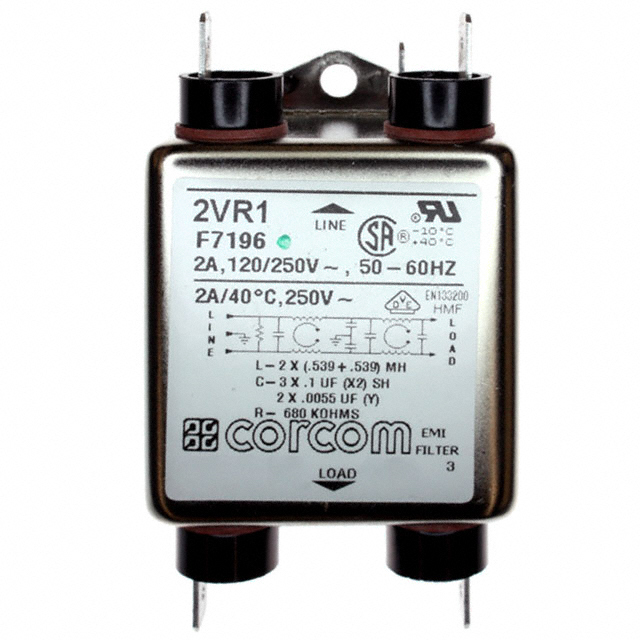

The TE Connectivity Corcom Filters 2VR1 is a single-phase EMC/RFI power line filter designed for chassis or panel mounting. It features a rated current of 2A and operates at voltage ratings of 120VAC or 250VAC. The component utilizes faston terminals with dimensions of 0.250 inches (6.35mm) for connection. Certified by CSA, UL, and VDE, it is suitable for commercial applications requiring noise suppression in low impedance load environments.

Feature Summary

• Provides two-stage RFI filtering for effective noise suppression
• Designed for low impedance loads in noisy RFI environments
• Supports general purpose commercial applications

Applications

• Commercial electronic equipment requiring EMI/RFI suppression
• Low impedance load systems
• Chassis mounted power entry modules

Procurement Notes

Verify the specific terminal style and mounting configuration against the official datasheet before procurement. Confirm that the 2A rating and 120/250VAC voltage specifications align with the target circuit requirements. Ensure compatibility with the required certification standards such as UL, CSA, or VDE for the intended market.

Selection Notes

Select this model when a compact, two-stage filter is needed for low impedance loads. It is appropriate for commercial grade applications where standard IEC inlet connectors are not required. Consider the faston termination style for PCB or wire harness integration. Verify panel cutout dimensions if panel mounting is planned.

Part Context

This component belongs to the TE Connectivity Corcom Filters series, which specializes in power line filters for commercial and industrial use. The 2VR1 variant specifically addresses the need for robust RFI suppression in compact form factors. It complements other Corcom products offering various current ratings and connector types.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation.
