3-1123723-2

Headers, Male Pins Overview

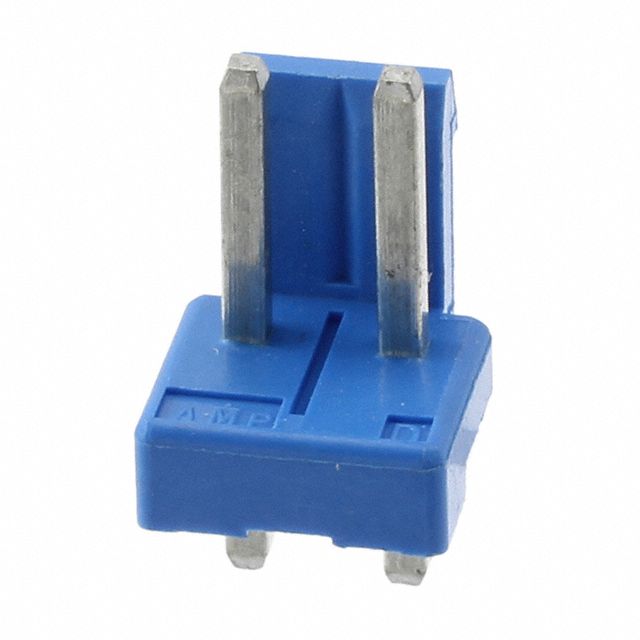

The 3-1123723-2 is a vertical PCB header from the AMPMODU MTE series by TE Connectivity. It features a 2-position, single-row configuration with a 3.96 mm pitch. The connector utilizes brass contacts plated with matte tin for reliable signal transmission. Designed for through-hole mounting, it supports wire-to-board connections with a current rating of 8 A and operates within a temperature range of -65°C to +105°C. The housing is constructed from glass-filled thermoplastic with a UL 94 HB flammability rating.

Headers, Male Pins Feature Summary

• Vertical PCB mount orientation for space-efficient board integration
• Matte tin-plated brass contacts ensure corrosion resistance and conductivity
• Glass-filled thermoplastic housing provides structural stability and thermal resilience

Headers, Male Pins Applications

• General electronic equipment interconnects
• Industrial control system wiring
• Consumer appliance circuit boards

Headers, Male Pins Procurement Notes

Verify the specific datasheet revision and manufacturing origin when sourcing this component. Confirm that the matte tin plating specification matches your environmental requirements. Ensure the through-hole footprint aligns with your PCB design guidelines. Check for any RoHS compliance documentation relevant to your region's regulations before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this model for applications requiring a robust 3.96 mm pitch header with high current capacity. The vertical orientation suits boards where height clearance allows. Consider the 8 A rating against peak load requirements. The unshrouded design requires careful mating alignment during assembly compared to shrouded alternatives.

Headers, Male Pins Part Context

This part belongs to the AMPMODU MTE family, known for economy power headers. It shares the 3.96 mm pitch standard with other variants in the series, such as different position counts. The series is widely used in general-purpose electronics where cost-effective, reliable connectivity is prioritized over high-density miniaturization.

Headers, Male Pins Replacement Considerations

Direct substitutes include other 2-position, 3.96 mm pitch vertical headers from TE Connectivity or compatible manufacturers. Verify that replacement parts match the 8 A current rating and through-hole termination style. Ensure the contact material and plating are equivalent to maintain performance integrity.
