3-130-956

Overview

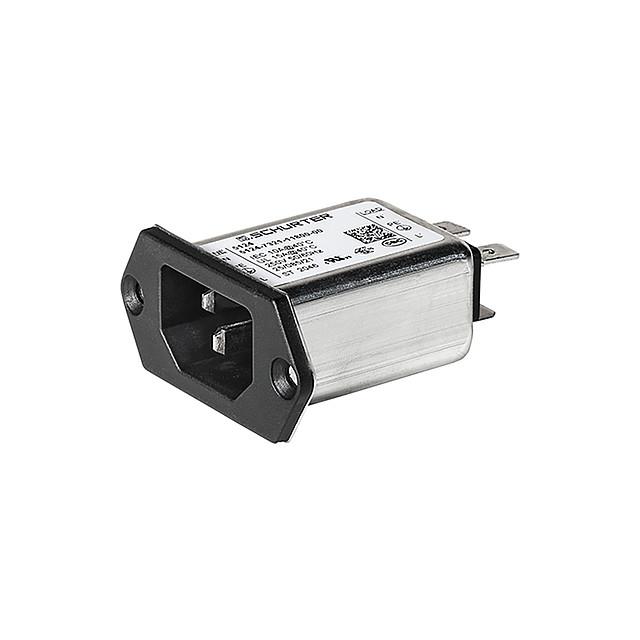

The SCHURTER Inc. 3-130-956 is a single-phase AC power entry module featuring an integrated EMC/EMI line filter. It utilizes an IEC 320-C14 connector interface and supports a current rating of 10 A at 250 VAC. The unit employs quick connect terminals for circuit board attachment and incorporates snap-in mounting for chassis installation. Designed for standard filtering applications, it operates within a temperature range of -25°C to +85°C and meets UL 94 V-0 flammability standards.

Feature Summary

• Integrated single-stage EMC/EMI line filter for noise suppression
• IEC 320-C14 receptacle for universal plug compatibility
• Snap-in chassis mounting mechanism for secure installation
• Quick connect terminal configuration for PCB integration

Applications

• Industrial equipment requiring filtered AC power input
• Medical devices needing EMI protection
• Information technology hardware systems
• Audiovisual equipment with sensitive electronics

Procurement Notes

Verify the specific ordering suffix and terminal configuration against the official Schurter datasheet before procurement. Confirm that the snap-in mounting style aligns with the target chassis design requirements. Ensure the 10 A current rating and 250 VAC voltage specifications meet the system's electrical demands. Check for RoHS compliance status if environmental regulations apply to the final assembly.

Selection Notes

Select this component when a combined power inlet and EMI filter solution is required in a compact form factor. The C14 connector ensures broad compatibility with standard power cords. Verify that the quick connect termination method suits the available PCB footprint. Consider the thermal operating limits and physical dimensions to ensure adequate clearance within the enclosure design.

Part Context

This part belongs to the Schurter 5124 series of power entry modules. The series provides various configurations of filtered and unfiltered AC power inputs. The 5124 series is designed for global market compliance, supporting multiple safety certifications. This specific model integrates filtering capabilities directly into the inlet housing.

Replacement Considerations

Direct substitutes may include other Schurter 5124 series variants with identical C14 connectors and quick connect terminals. Verify that any replacement maintains the same 10 A rating and snap-in mounting style. Cross-reference technical drawings to ensure mechanical fitment matches the existing PCB layout and chassis cutout.
