3-130-963

Overview

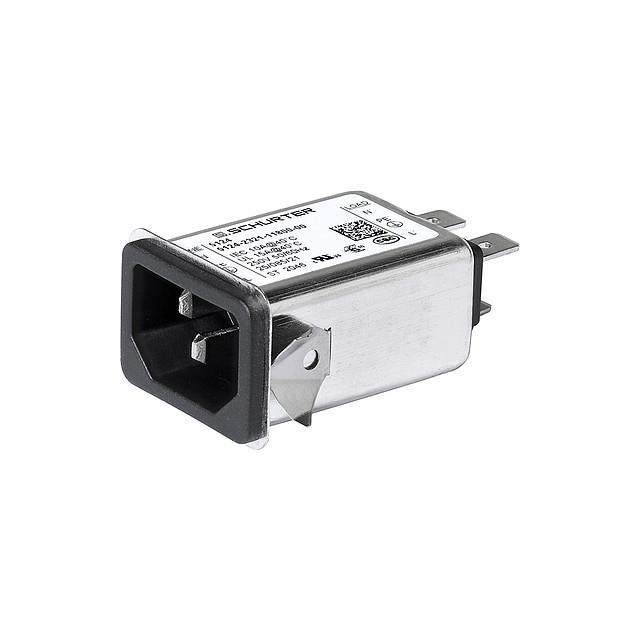

The Schurter 3-130-963 is an AC power entry module designed for snap-in mounting. It features a C14 connector type and operates at a rated voltage of 250 VAC with a current rating of 10 A. The unit incorporates a standard line filter and utilizes quick connect termination. Constructed from thermoplastic housing, it meets UL 94 V-0 flammability standards.

Feature Summary

• Integrates a standard line filter for noise suppression
• Designed for secure snap-in panel mounting
• Utilizes quick connect termination for simplified wiring

Applications

• Industrial equipment power input
• Medical device power supplies
• Consumer electronics enclosures

Procurement Notes

Verify the specific part number against official Schurter documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with existing panel cutouts and terminal types before procurement. Cross-reference certification requirements such as UL or IEC standards with the target application's regulatory needs.

Selection Notes

Select this component when a filtered power inlet with snap-in installation is required. Confirm that the 10 A current rating and 250 VAC voltage align with system specifications. Verify that the quick connect termination method matches the downstream wiring harness design.

Part Context

This component belongs to Schurter's AC power entry module range. The series provides reliable circuit protection and electromagnetic interference filtering for various electronic applications. Schurter manufactures these components to meet international safety and performance standards.

Replacement Considerations

Consult official Schurter substitution guides for verified alternatives. Generic equivalents may not match the specific filter characteristics or mounting constraints.
