3-130-966

Overview

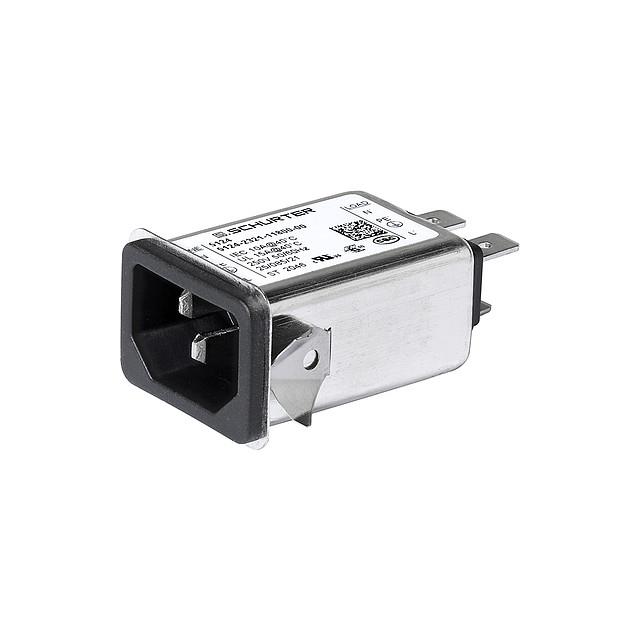

The Schurter 3-130-966 is a snap-in AC power entry module featuring an integrated line filter. It utilizes a C14 connector interface and supports quick connect termination. The component has a current rating of 15 A and a voltage rating of 250 VAC. It is constructed with a thermoplastic housing and meets UL 94 V-0 flammability standards.

Feature Summary

• Integrates a line filter for electromagnetic interference suppression
• Features a C14 input connector for standard power cord attachment
• Designed for snap-in panel mounting installation
• Utilizes quick connect terminals for circuit board attachment

Applications

• Industrial equipment requiring filtered AC power input
• Medical devices needing compliant power entry modules
• Test and measurement instruments
• Audiovisual equipment

Procurement Notes

Verify the specific manufacturer part number against official Schurter documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with the target panel thickness and PCB terminal spacing before procurement. Cross-reference certification requirements such as UL or IEC standards with the final product specifications.

Selection Notes

Select this component when a filtered power entry module with a C14 inlet is required. Consider the 15 A current capacity and 250 VAC rating for suitability in standard AC mains applications. Verify that the snap-in mounting style and quick connect termination align with the mechanical design constraints of the enclosure and printed circuit board.

Part Context

This component belongs to the Schurter power entry module family, specifically designed for AC power input applications. It serves as a safety and filtering interface between the AC mains supply and the internal electronics of a device. The series typically includes variants with different current ratings and connector types.
