Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A PANEL MNT
- Series：5121
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：50 ~ 60Hz
- Applications：General Purpose
- Approval Agency：CQC, cURus, ENEC
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

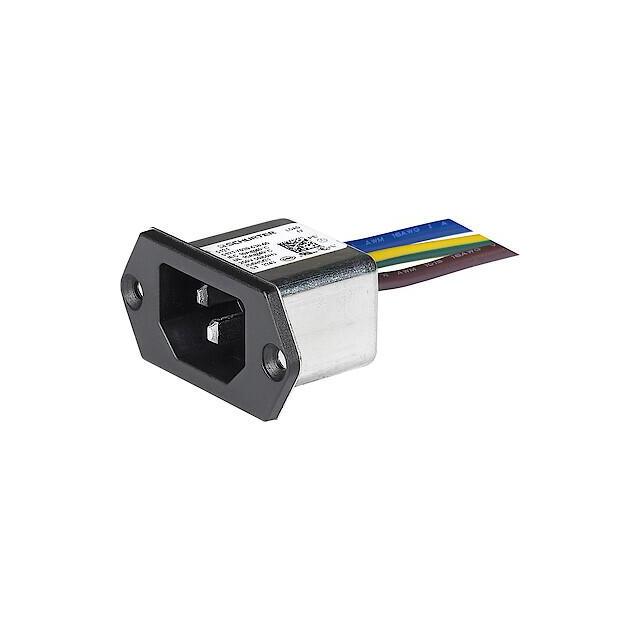

The Schurter 3-132-192 is a single-phase AC power entry module featuring an IEC 60320-C14 appliance inlet. It integrates a compact standard EMC/EMI line filter designed for noise suppression in electronic equipment. The unit supports a rated current of 15 A and operates at voltages up to 250 VAC within a frequency range of 50 to 60 Hz. Installation is achieved via screw mounting with a plastic flange, utilizing flexible wire leads for termination.
Feature Summary
- Integrates a single-stage EMC/EMI filter for effective noise attenuation
- Features a C14 appliance inlet compatible with standard power cords
- Utilizes screw-mount construction with a front plastic flange for secure panel attachment
Applications
- Control consoles
- Audio amplifiers
- Computer central processing units
Procurement Notes
Verify the specific part number against official Schurter documentation to confirm electrical ratings and certification status. Ensure compatibility with the intended enclosure thickness and wiring requirements before procurement. Cross-reference datasheets for precise dimensional tolerances and terminal specifications.
Selection Notes
Select this component when a combined power inlet and EMI filtering solution is required for single-phase applications. Consider the 15 A current rating and 250 VAC voltage limit to ensure safe operation within the system's electrical parameters. Verify that the wire lead termination method aligns with the assembly process.
Part Context
This component belongs to the Schurter AC Power Entry Module series, which provides integrated solutions for power connection and electromagnetic interference suppression. These modules are engineered to meet international safety standards while maintaining a compact form factor suitable for space-constrained electronic enclosures.
Replacement Considerations
Consult official Schurter substitution guides or distributor cross-reference tools for verified equivalent models. Ensure any replacement maintains identical current, voltage, and filtering characteristics to preserve system compliance and performance.
