3-132-196

Overview

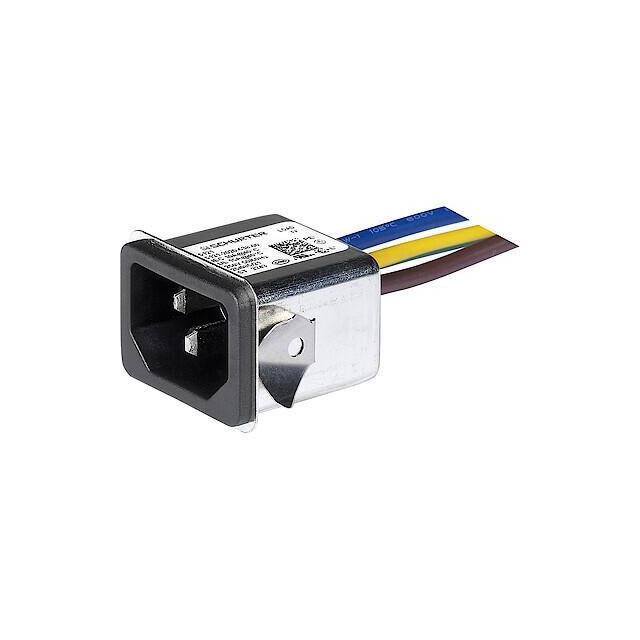

The SCHURTER 3-132-196 is a single-phase AC power entry module designed for appliance inlet applications. It features an IEC 320-C14 connector interface and integrates a compact standard EMC/EMI line filter. The unit supports a rated current of 15 A at 250 VAC with a frequency range of 50 to 60 Hz. Installation is achieved via snap-in mounting on the front panel, utilizing flexible wire connections for circuit integration.

Feature Summary

• Integrates a single-stage EMC/EMI line filter within a compact form factor
• Features snap-in front panel mounting for secure chassis installation
• Utilizes flexible wire termination for adaptable internal wiring

Applications

• Medical equipment power input systems
• Appliance inlet modules requiring EMI suppression
• Single-phase AC power distribution units

Procurement Notes

Verify the specific manufacturer part number against official SCHURTER documentation to confirm electrical ratings and certification status. Ensure compatibility with the intended C14 mating connector and verify that the snap-in mounting dimensions align with the target chassis aperture requirements before procurement.

Selection Notes

Select this component when a combined power inlet and EMI filtering solution is required in a single housing. The snap-in design simplifies assembly compared to screw-mounted alternatives. Confirm that the 15 A current rating and 250 VAC voltage specification meet the system's operational demands and regulatory compliance needs.

Part Context

This component belongs to SCHURTER’s AC power entry module series, which provides integrated solutions for power connection and electromagnetic interference suppression. These modules are engineered to replace separate inlet and filter assemblies, reducing board space and simplifying the bill of materials for end-product manufacturers.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material.
