Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A PANEL MNT
- Series：5121
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Medical
- Approval Agency：CQC, cURus, ENEC
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

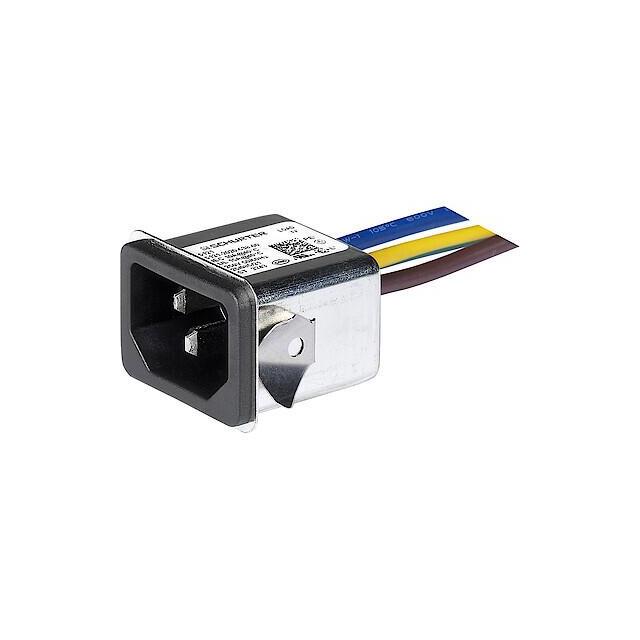

The SCHURTER Inc. part number 3-132-197 is a single-phase EMC/EMI line filter module designed for AC power applications. It operates at a rated voltage of 250VAC and supports current ratings of either 10A or 15A depending on the specific configuration source. The unit utilizes an IEC 320-C14 connector interface and features wire lead termination for flexible connections. Designed for snap-in mounting, this component provides single-stage filtering performance suitable for environments requiring 50 to 60Hz operation.
Feature Summary
- Integrates single-stage EMC/EMI filtering capabilities within a compact power entry module design.
- Features wire lead termination to allow for flexible connection arrangements during assembly.
- Supports snap-in mounting configuration for secure installation into equipment chassis.
Applications
- Medical equipment power entry systems
- Industrial control panels requiring EMI suppression
- Appliance inlet modules with integrated filtering
Procurement Notes
Verify the exact current rating (10A vs 15A) required for your specific application against the manufacturer's datasheet, as sources vary. Confirm that the wire lead termination style matches your wiring harness specifications. Ensure the IEC 320-C14 receptacle compatibility aligns with your mating plug standards before finalizing procurement orders.
Selection Notes
Select this component when a combined power inlet and EMI filter solution is needed to save board space. The snap-in mount facilitates rapid assembly compared to soldered alternatives. Verify thermal management requirements as the unit handles significant current loads. Ensure the operating frequency range of 50-60Hz meets your regional power grid standards.
Part Context
This component belongs to Schurter's AC Power Entry Modules category, specifically those integrating compact medical-grade filters. It serves as a critical interface between the mains supply and sensitive electronic loads, providing necessary noise attenuation while delivering power through a standardized C14 connector interface.
Replacement Considerations
Direct substitutes must match the IEC 320-C14 interface, snap-in mounting style, and wire lead termination. Verify that any replacement offers equivalent single-stage filtering performance and meets the same voltage and current ratings for safe integration.
