Product Detailed Parameters
- Description：LINE FILTER 250VAC 15A PANEL MNT
- Series：5121
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Single Phase
- Configuration：Single Stage
- Voltage - Rated DC：-
- Voltage - Rated AC：250V
- Current：15 A
- Frequency - Operating：50 ~ 60Hz
- Applications：Medical
- Approval Agency：CQC, cURus, ENEC
- Operating Temperature：-25°C ~ 85°C
- Mounting Type：Panel Mount
- Termination Style：IEC 320-C14, Wire Leads
- Inductance：-
- Voltage - Rated AC (Phase to Ground/Neutral)：-
- Voltage - Rated AC (Phase to Phase)：-
Download product information
Overview

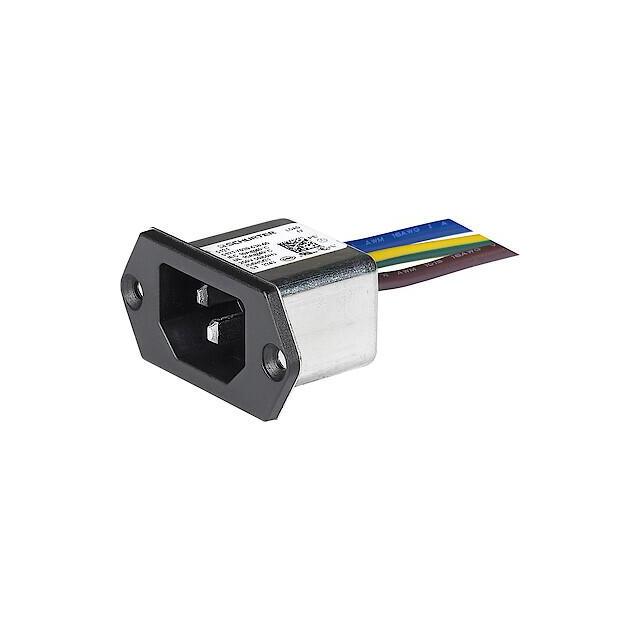

The Schurter 3-132-199 is a single-phase EMC/EMI power line filter module designed for AC mains input applications. It features an IEC C14 appliance inlet with screw mounting and flexible wire connections. The unit provides high-frequency filtering compliant with medical standards, rated at 15 A and 250 VAC, operating within a temperature range of -40°C to +85°C.
Feature Summary
- Integrates compact IEC C14 inlet with superior high-frequency mains input filtering capabilities
- Complies with medical safety standards for enhanced electrical isolation and noise suppression
- Supports front or rear panel mounting via screw mechanism with flexible wire termination
Applications
- Medical equipment power supply inputs
- Industrial control systems requiring EMI suppression
- Appliance inlets needing certified single-stage filtering
Procurement Notes
Verify the specific current rating configuration against the official datasheet, as sources indicate both 10A and 15A variants. Confirm that the wire termination type matches your assembly requirements. Ensure the medical certification status aligns with your regulatory compliance needs before procurement.
Selection Notes
Select this component when a combined inlet and filter solution is required to save board space. It is suitable for applications demanding strict adherence to medical EMC standards. Verify that the 15A rating meets the load requirements and that the wire lead length accommodates the enclosure design.
Part Context
This part belongs to Schurter's AC power line filter modules series. It combines an IEC C14 connector with integrated EMI filtering technology. The design targets applications where space constraints and stringent noise reduction are critical priorities for system performance.
Replacement Considerations
Check for compatible IEC C14 filtered inlets from other manufacturers if sourcing issues arise. Ensure replacement units maintain the same 15A rating and medical certification level. Verify mechanical dimensions for panel cutout compatibility.
