3-134-821

Overview

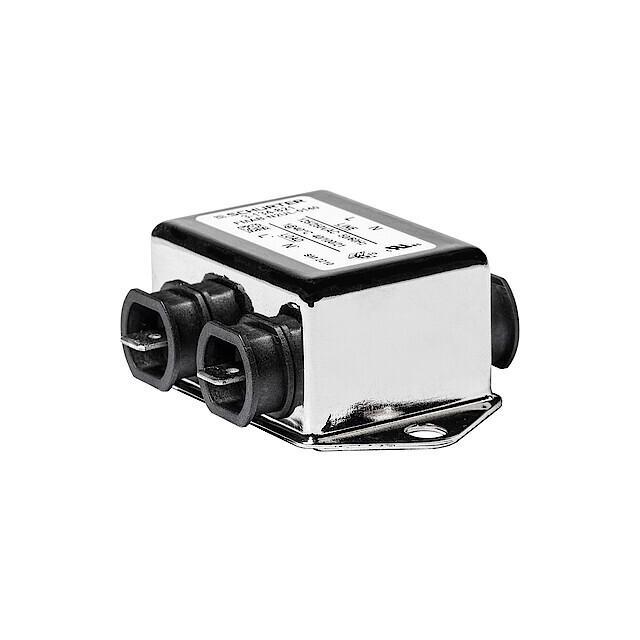

The SCHURTER Inc. 3-134-821 is a single-phase AC power line filter module belonging to the FMAB NEO series. It features a rated AC voltage of 250V and a current rating of 1A. The unit utilizes quick connect termination style for circuit integration. Designed for chassis mounting, it operates within an ambient temperature range of -40°C to +100°C.

Feature Summary

• Single-phase filtering configuration
• Chassis mount installation style
• Quick connect termination interface

Applications

• Industrial control equipment
• Medical devices
• Test and measurement instruments

Procurement Notes

Verify the specific datasheet version for the 3-134-821 part number to confirm exact attenuation characteristics and terminal pinout details. Ensure that the selected mounting hardware accommodates the chassis dimensions specified in the official manufacturer documentation before finalizing procurement orders.

Selection Notes

Select this component when a compact, single-phase EMI filter with low current capacity is required for chassis-mounted applications. The wide operating temperature range supports use in environments subject to significant thermal variations. Confirm that the quick connect terminals match the available wiring harness specifications.

Part Context

This component is part of the FMAB NEO series from SCHURTER Inc., which focuses on compact power line filters. The series provides electromagnetic interference suppression for sensitive electronic circuits. The 3-134-821 variant specifically addresses single-phase applications requiring 1A protection.

Replacement Considerations

Consult official Schurter cross-reference lists for verified substitutes. Generic equivalents may not match the specific attenuation curves or mechanical footprint requirements of the original design.
