3-137-004

Overview

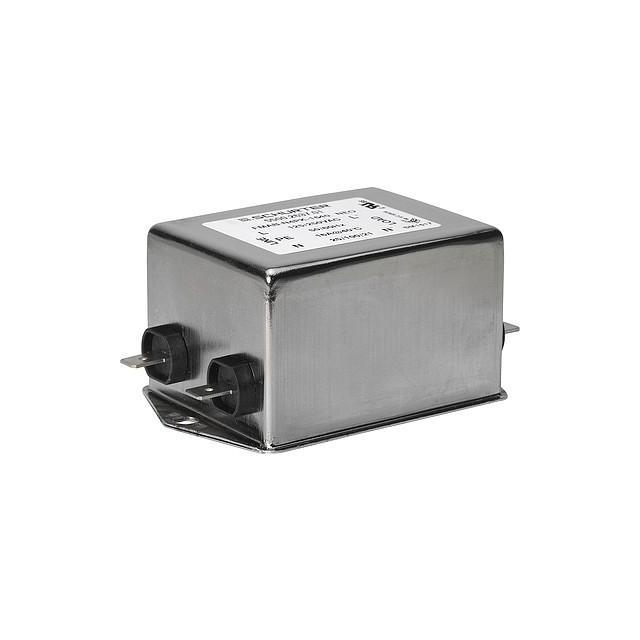

The SCHURTER Inc. model 3-137-004 is a single-phase AC power line filter belonging to the FMAB NEO series. It features an integrated PE choke for EMI/EMI suppression and operates at a rated voltage of 250 VAC with a current rating of 8 A. The unit utilizes quick connect terminals for circuit attachment and supports DIN rail mounting. Designed for industrial applications, it functions within a temperature range of -40°C to +100°C at 60 Hz.

Feature Summary

• Integrates a common mode choke for effective noise attenuation
• Supports standard DIN rail installation for secure mounting
• Utilizes quick connect terminal interfaces for simplified wiring

Applications

• Industrial machinery control panels
• Medical equipment power supplies
• Automated manufacturing systems

Procurement Notes

Verify that the specific part number matches the required 8A current rating and 250VAC specification. Confirm compatibility with the intended DIN rail profile and ensure the quick connect terminal type aligns with existing harness designs. Cross-reference certification requirements against local regulatory standards before finalizing procurement.

Selection Notes

Select this component when a compact single-phase solution with integrated filtering is required. Ensure the application environment stays within the specified operating temperature limits. Verify that the 8A continuous current capacity meets the load requirements without derating issues in enclosed spaces.

Part Context

This component belongs to the FMAB NEO series of power line filters manufactured by SCHURTER Inc. The series focuses on providing efficient electromagnetic interference suppression for sensitive electronic equipment while maintaining a small footprint suitable for dense panel layouts.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic replacements may lack identical choking characteristics or certification approvals.
