Product Detailed Parameters
- Description：DKCV-1 COMP.CHOKE 2PH 3A 12MH
- Series：DKCV-1
- Mfr：SCHURTER Inc.
- Package：Box
- Filter Type：Power Line
- Number of Lines：2
- Current Rating (Max)：3A
- DC Resistance (DCR) (Max)：23.7mOhm
- Voltage Rating - DC：450V
- Voltage Rating - AC：300V
- Operating Temperature：-40°C ~ 100°C
- Ratings：-
- Approval Agency：UR, VDE
- Features：-
- Mounting Type：Through Hole
- Size / Dimension：0.764" L x 0.661" W (19.40mm x 16.80mm)
- Height (Max)：0.984" (25.00mm)
- Package / Case：Vertical, 4 PC Pin
- Inductance @ Frequency：-
Download product information
Overview

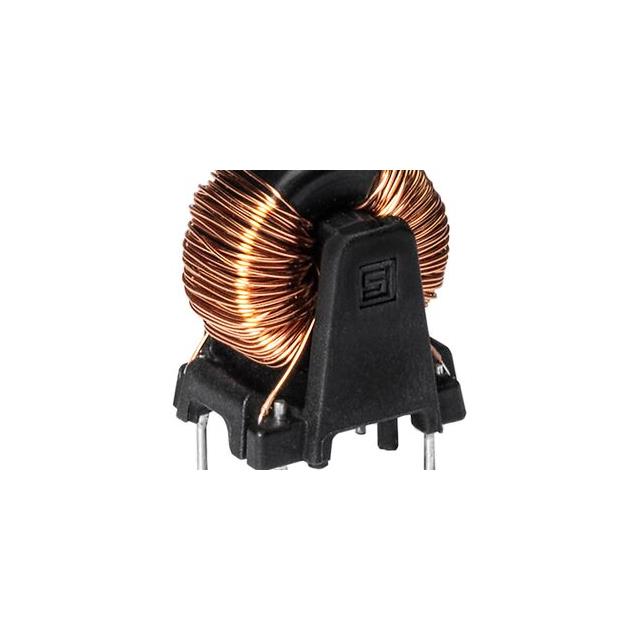

The Schurter 3-137-417 is a current compensated common mode choke designed for through-hole mounting. It features an inductance of 12 mH and supports a continuous current rating of 3 A with a DC resistance of 23.7 mΩ. The component operates at voltages up to 300 V ac and is suitable for 50/60 Hz applications. It utilizes vertical terminal orientation for PCB integration.
Feature Summary
- Current compensated design for efficient noise suppression
- Vertical through-hole termination for board mounting
- High inductance value for effective filtering
Applications
- AC power line filtering
- Common mode noise reduction in electronic equipment
- Power supply input stages
Procurement Notes
Verify the manufacturer part number 3-137-417 against official Schurter documentation to ensure authenticity. Confirm that the required inductance, current rating, and physical dimensions match your circuit design specifications before procurement.
Selection Notes
Select this component when a high-inductance current compensated choke is required for AC lines. Ensure the PCB layout accommodates the vertical through-hole form factor and that the operating voltage does not exceed 300 V ac.
Part Context
This component belongs to Schurter's range of electromagnetic interference filters and chokes. It is engineered for reliability in industrial and commercial power applications where significant common mode noise attenuation is necessary.
Replacement Considerations
No public substitute part numbers are documented for this specific component.
