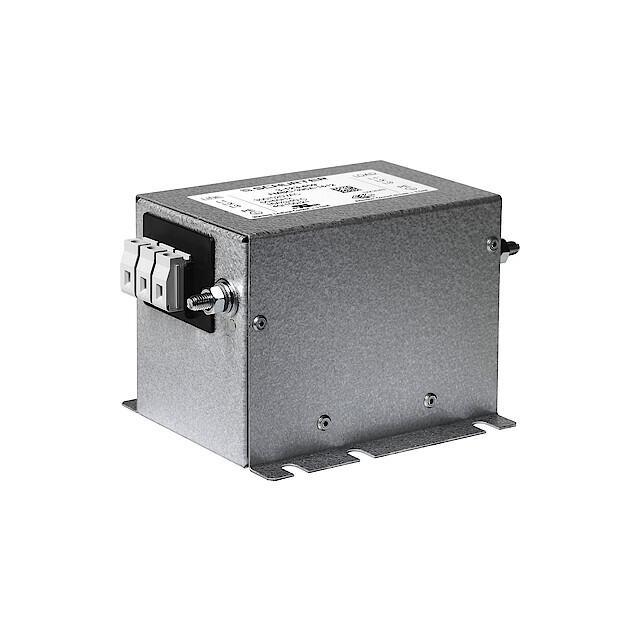

3-138-283

$67.41

Description：LINE FILTER 16A CHASSIS MOUNT
Series：FMAC NEO
Mfr：SCHURTER Inc.
Package：Bulk

SKU:b7ce68a00d96 Category: Power Line Filter Modules Brand: SCHURTER Inc.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LINE FILTER 16A CHASSIS MOUNT
Series：FMAC NEO
Mfr：SCHURTER Inc.
Package：Bulk
Filter Type：Three Phase (Delta)
Configuration：Single Stage
Voltage - Rated DC：-
Voltage - Rated AC：-
Current：16 A
Frequency - Operating：50 ~ 60Hz
Applications：General Purpose
Approval Agency：cURus, ENEC
Operating Temperature：-40°C ~ 100°C
Mounting Type：Chassis Mount
Termination Style：Terminal Block, Threaded Post (M6)
Inductance：-
Voltage - Rated AC (Phase to Ground/Neutral)：300 V
Voltage - Rated AC (Phase to Phase)：520 V

Download product information

3-138-283

Overview

The SCHURTER Inc. 3-138-283 is a three-phase (Delta) EMC/EMI line filter module from the FMAC NEO series. It provides single-stage filtering with a rated current of 16 A and operates at voltages up to 520 VAC across 50 Hz and 60 Hz frequencies. Designed for chassis mounting, it utilizes terminal block connections with M6 threaded posts. The unit exhibits a leakage current of 9.42 mA and functions within a temperature range of -40°C to +100°C.

Feature Summary

Provides single-stage electromagnetic interference suppression for three-phase delta systems
Engineered for direct chassis mounting using standard threaded post terminals
Constructed to withstand industrial operating temperatures ranging from -40°C to +100°C

Applications

Industrial machinery requiring EMI suppression
Three-phase power distribution systems
Equipment sensitive to electromagnetic interference

Procurement Notes

Verify that the specific application requires a Delta configuration, as this model is not suitable for Wye systems. Confirm that the mounting hardware accommodates the M6 threaded post interface. Ensure the operational environment remains within the specified -40°C to +100°C thermal limits to maintain performance integrity and safety compliance.

Selection Notes

Select this component when a single-stage solution is sufficient for noise reduction requirements in three-phase delta circuits. Consider the physical dimensions and chassis mounting constraints during integration. Evaluate if the 16 A current rating aligns with the maximum load expectations to prevent overheating or premature failure under sustained operation.

Part Context

This component belongs to the FMAC NEO series, which focuses on compact power line filtering solutions. The series emphasizes high efficiency and reliability for industrial applications. The 3-138-283 variant specifically addresses the needs of three-phase delta configurations, offering a standardized form factor for easy integration into existing electrical panels.
