3-143-596

Overview

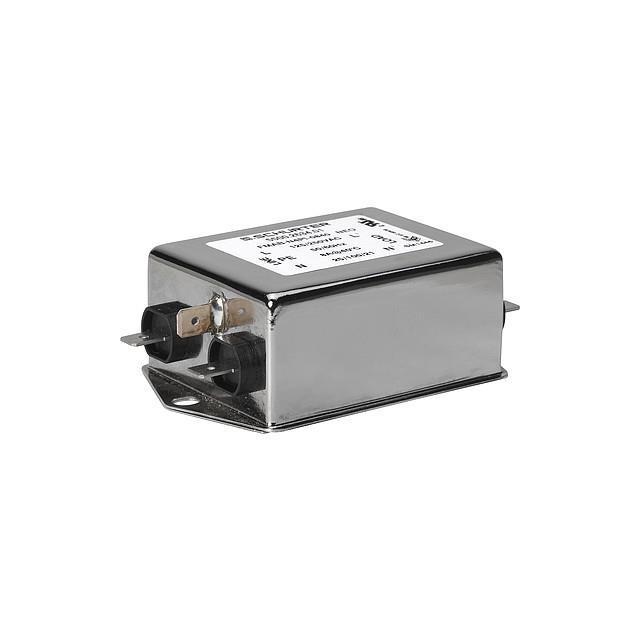

The Schurter 3-143-596 is a single-stage power line filter module designed for AC mains protection. It features a rated current of 1 A and operates at 250 V ac with a frequency of 60 Hz. The unit utilizes quick connect terminals for circuit integration and supports chassis mounting configurations. Its compact design facilitates efficient electromagnetic compatibility management in low-current applications.

Feature Summary

• Single-stage filtering architecture for effective noise suppression
• Quick connect terminal interface for simplified wiring
• Chassis mount construction for secure installation

Applications

• AC power line filtering
• Electromagnetic compatibility (EMC) mitigation
• Low-current electronic equipment protection

Procurement Notes

Verify the specific voltage rating and current capacity against the target circuit requirements before procurement. Confirm that the quick connect terminal type matches the available connector infrastructure. Ensure the chassis mounting style aligns with the physical enclosure constraints. Validate compliance with local safety standards for the intended deployment region.

Selection Notes

Select this component when a compact, single-stage solution is required for 1 A circuits. The quick connect feature suits automated assembly or rapid maintenance environments. Consider the chassis mount form factor if panel integration is necessary. Evaluate thermal performance within the expected operating temperature range to ensure reliability.

Part Context

This component belongs to the FMAB NEO series of power line filters from Schurter. The series focuses on providing essential EMI/RFI attenuation in a minimal footprint. It targets applications where space is limited but basic power line cleanliness is critical. The design prioritizes straightforward integration into standard electrical enclosures.

Replacement Considerations

No public confirmed substitute part numbers are available.
