3-143-600

Overview

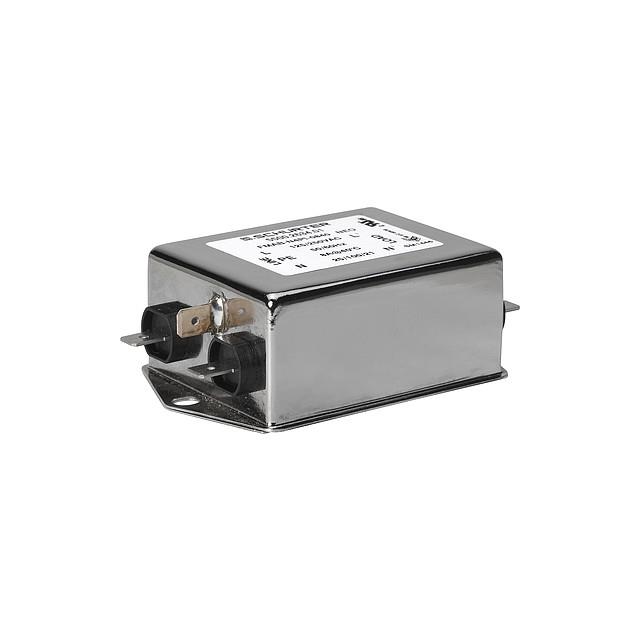

The SCHURTER Inc. model 3-143-600 is a single-phase EMC/EMI line filter module designed for power line protection. It features an 8 A current rating and operates at 250 V AC with 50/60 Hz frequency support. The unit utilizes a single-stage filtering architecture to suppress electromagnetic interference. Electrical connections are established via quick connect terminals, facilitating integration into equipment power inputs.

Feature Summary

• Single-stage EMI suppression architecture
• Quick connect terminal interface

Applications

• Power line input filtering
• EMC compliance in electronic equipment

Procurement Notes

Verify the specific datasheet for the 3-143-600 to confirm exact physical dimensions and mounting requirements. Ensure the application voltage and current ratings align with system specifications before procurement. Cross-reference official Schurter documentation for precise terminal type details.

Selection Notes

Select this component when single-phase EMI filtering is required at 8 A. The quick connect interface suits applications needing rapid assembly. Verify that the single-stage performance meets the specific noise reduction needs of the target electronic device.

Part Context

This part belongs to Schurter's range of power line filter modules. These components are engineered to mitigate conducted emissions from switching power supplies and other noisy loads, ensuring adherence to international electromagnetic compatibility standards for industrial and commercial electronics.

Replacement Considerations

Consult official Schurter substitution guides for verified alternatives. Generic equivalents may not match the specific insertion loss characteristics or physical footprint of the original component.
