3-143-615

Overview

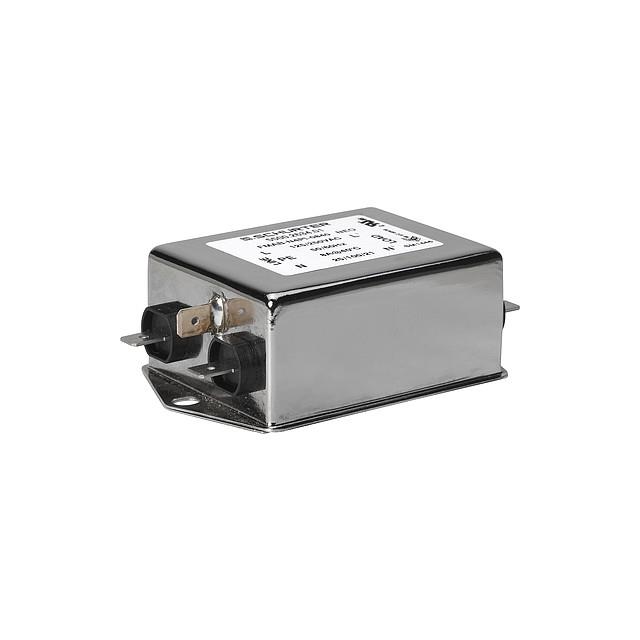

The Schurter 3-143-615 is a single-phase EMC/EMI power line filter module designed for chassis mounting. It features quick connect terminals with dimensions of 6.3 x 0.8 mm. The component operates at a rated voltage of 250 VAC and supports a current rating of 30 A at 50/60 Hz. It utilizes a single-stage filtering architecture and is designated as the Medical M5 version, indicating compliance with specific medical safety standards.

Feature Summary

• Single-stage EMI/EMC filtering architecture
• Medical M5 version certification
• Quick connect terminal interface

Applications

• Medical equipment power supplies
• Industrial control systems
• Chassis-mounted electronic enclosures

Procurement Notes

Verify the Medical M5 designation against specific regional regulatory requirements for your target market. Confirm that the 6.3 x 0.8 mm quick connect terminal dimensions match the mating connectors on your PCB or wiring harness. Ensure the chassis mounting style aligns with your enclosure design constraints.

Selection Notes

Select this model when a single-stage solution is sufficient for your noise attenuation needs. The Medical M5 variant is appropriate for applications requiring enhanced isolation or specific medical safety clearances. Consider the 30 A current capacity to ensure adequate headroom for peak loads in your system design.

Part Context

This component belongs to the FMAB NEO series of power line filters from Schurter. The series is characterized by compact chassis-mount designs intended for integration into larger electrical assemblies where space efficiency and reliable EMI suppression are critical for maintaining signal integrity.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
