3-143-623

Overview

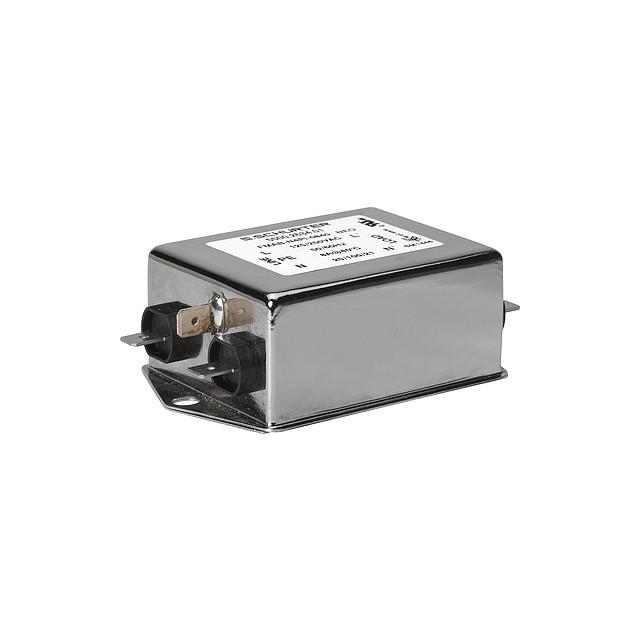

The Schurter 3-143-623 is a single-phase, one-stage AC power line filter designed for chassis mounting. It features a rated current of 16 A and operates at 250 VAC (50/60 Hz). The unit utilizes quick connect terminals measuring 6.3 x 0.8 mm for electrical interfacing. Certified under the Medical M80 standard, it provides high-performance EMC/EMI filtering capabilities suitable for sensitive medical equipment applications.

Feature Summary

• Provides high-performance electromagnetic interference suppression
• Complies with stringent medical safety standards
• Utilizes quick-connect terminal interface for simplified assembly

Applications

• Medical electronic devices requiring certified filtration
• Single-phase AC power input stages
• Equipment demanding high EMI attenuation

Procurement Notes

Verify that the specific Medical M80 certification aligns with your regulatory requirements. Confirm that the 16 A current rating and 250 VAC voltage specifications match your system's operational parameters. Ensure the quick connect terminal dimensions are compatible with your wiring harness or PCB layout before finalizing procurement decisions.

Selection Notes

Select this component when medical device compliance is mandatory. The 16 A rating suits moderate power loads. Verify space constraints for chassis mounting. The quick connect terminals offer ease of integration compared to screw types. Consider the single-stage design limitations regarding extreme noise environments.

Part Context

This part belongs to the FMAB NEO series from Schurter. The series focuses on compact, high-performance power line filters. These units are engineered for reliable operation in critical infrastructure and healthcare sectors. The NEO designation indicates specific performance enhancements within the broader product family.

Replacement Considerations

No public confirmed substitute part numbers are available.
