3-1462039-3
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters

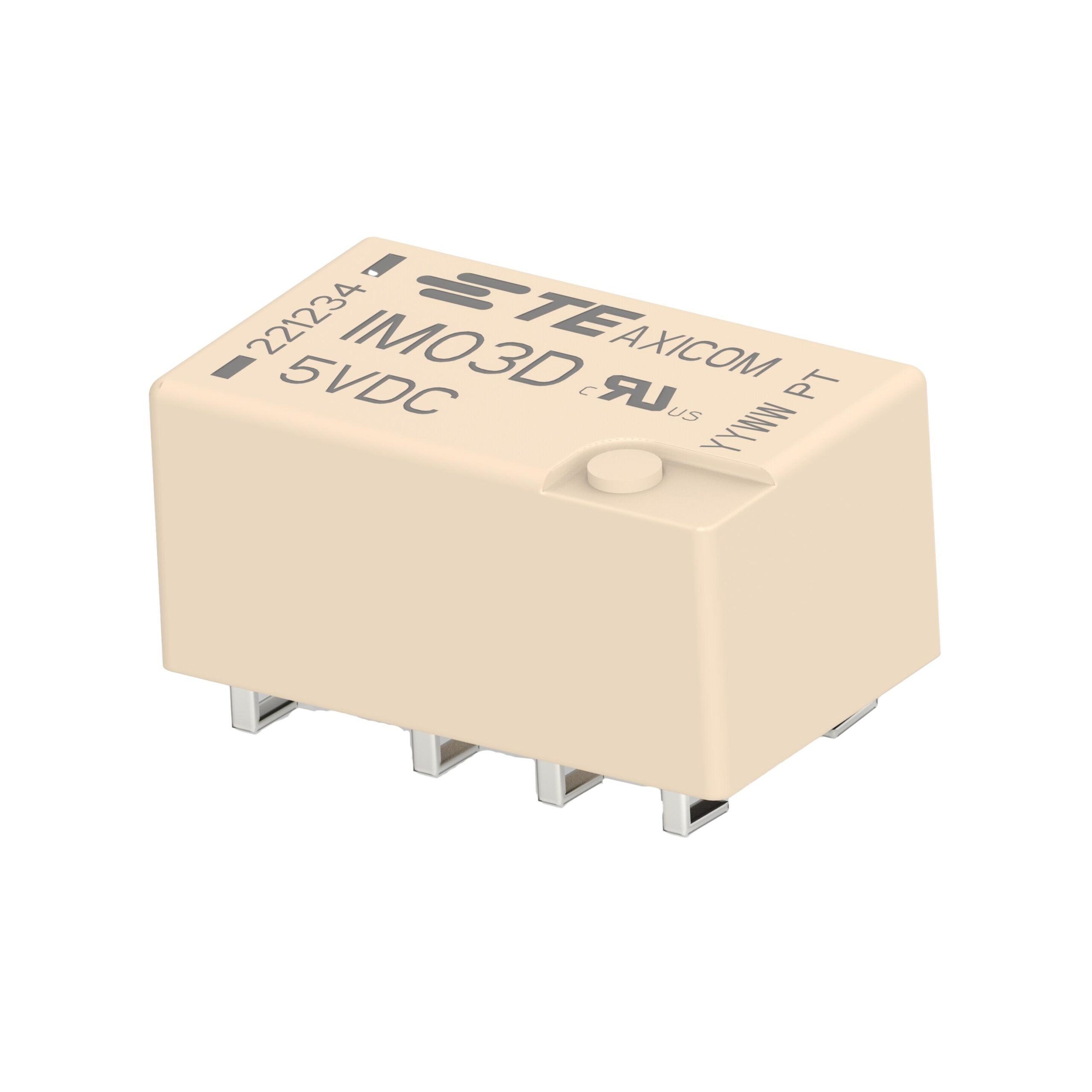

- Description：RELAY GEN PURPOSE DPDT 5A 5V
- Series：IM, AXICOM
- Mfr：TE Connectivity Potter & Brumfield Relays
- Package：Tape & Reel (TR),Cut Tape (CT)
- Mounting Type：Surface Mount
- Coil Voltage：5VDC
- Contact Form：DPDT (2 Form C)
- Contact Rating (Current)：5:00 AM
- Switching Voltage：250VAC, 220VDC - Max
- Load - Max Switching：62.5VA, 60W
- Coil Current：28.1 mA
- Coil Type：Non Latching
- Features：-
- Termination Style：Gull Wing
- Seal Rating：Sealed - Hermetically
- Coil Insulation：-
- Must Operate Voltage：3.75 VDC
- Must Release Voltage：0.5 VDC
- Operating Temperature：-40°C ~ 85°C
- Contact Material：Silver Nickel (AgNi), Gold (Au)
- Approval Agency：UR, VDE
- Relay Type：Telecom
- Grade：-
- Qualification：-
- Operate Time：3 ms
- Release Time：3 ms
